NiteHawk 36 (for round pancake motors) USB toolhead by LDO
What it is:

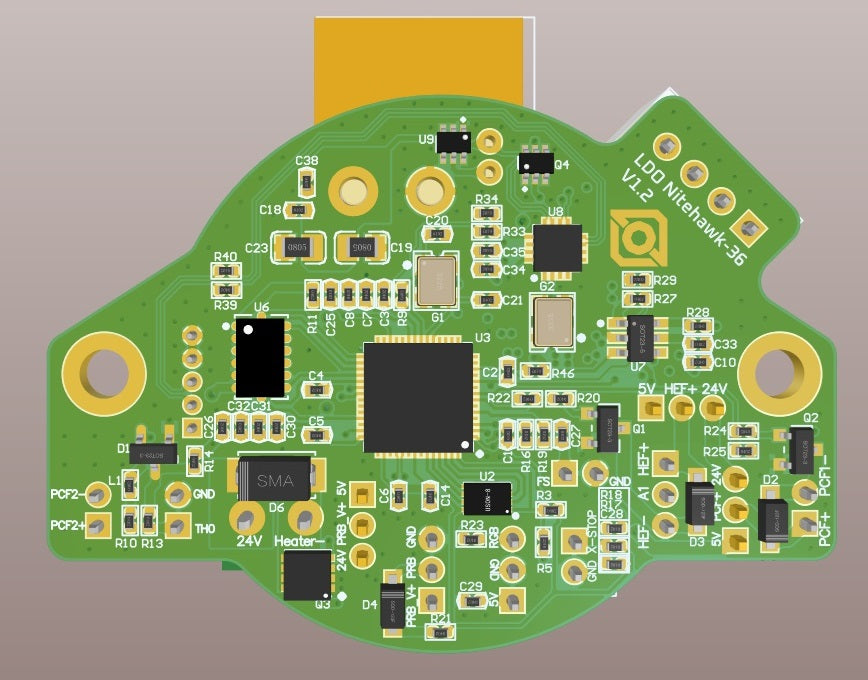

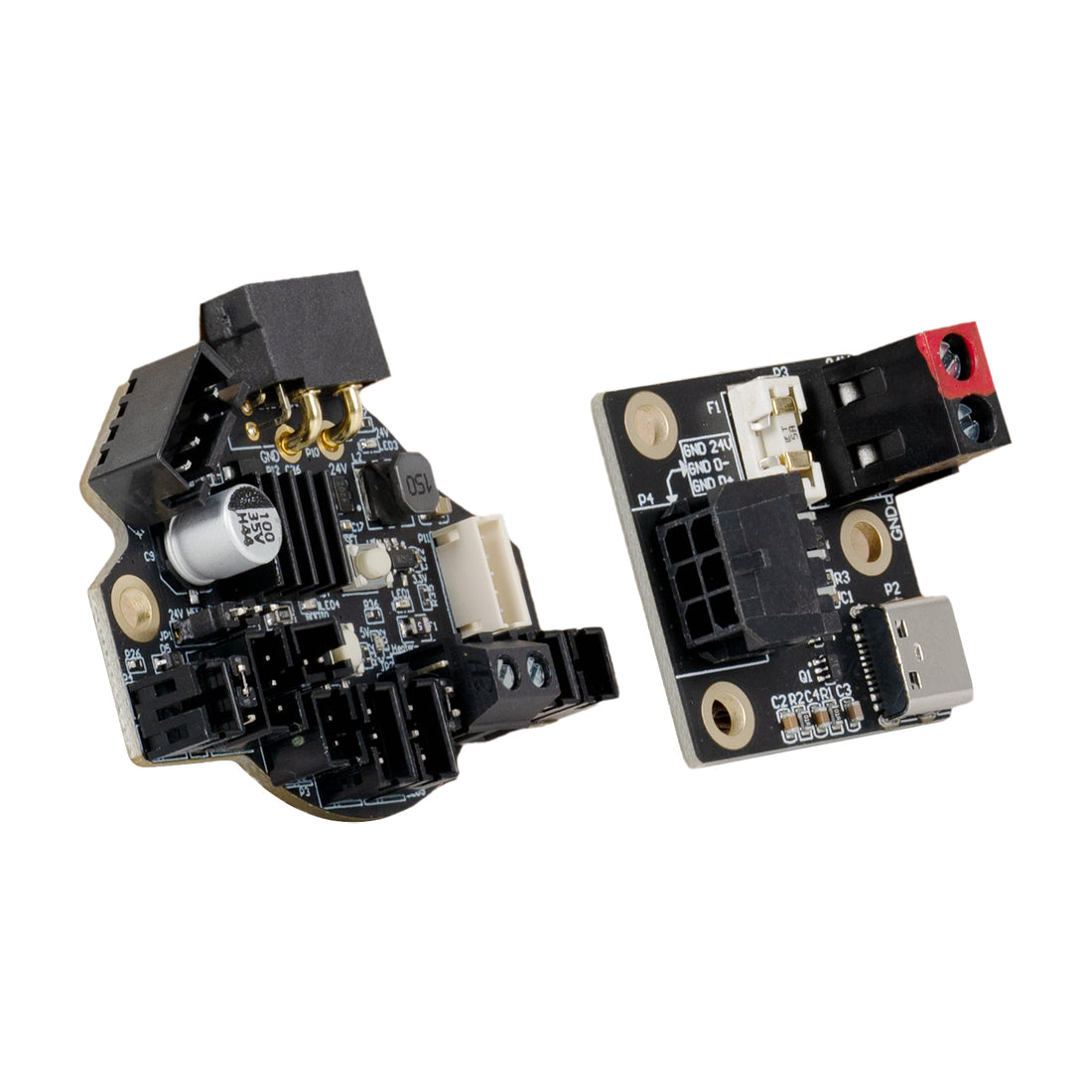

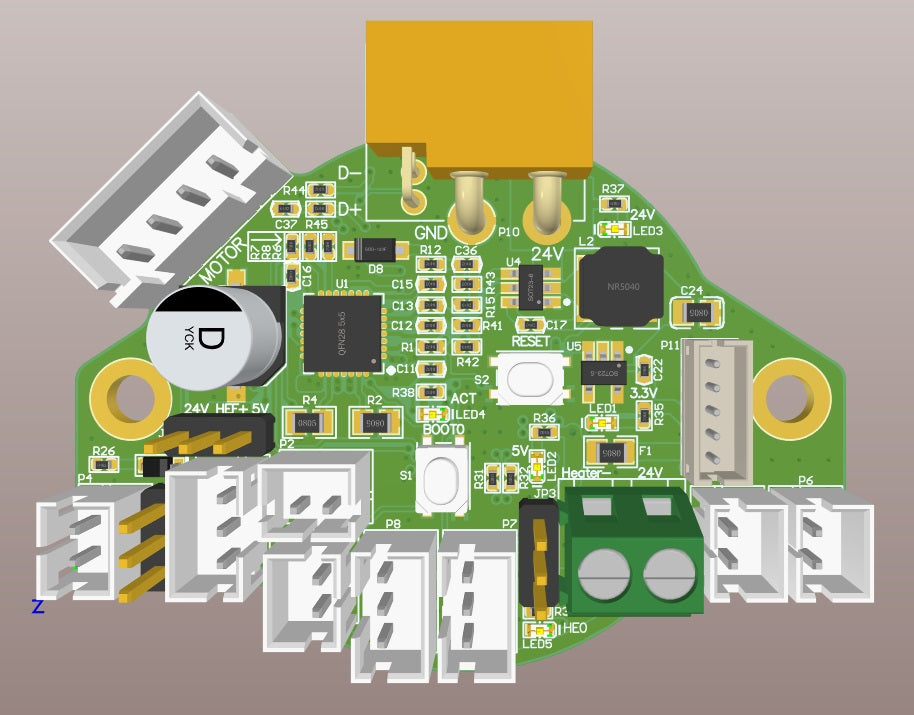

Nitehawk-36 by LDO is a tool board featuring RP2040 MCU, TMC2209 stepper drive, ADXL345 accelerometer, and USB port. Nitehawk-36's USB based connection method allows for a simple and easy setup compared to other CAN tool boards. The USB connection also allows for a secondary USB port to connect your nozzle webcam or eddy current probe.
Special Deal
- Get 5$ off and Free shipping when you add an LDO Leviathan board (rev D bundle kit)
Features

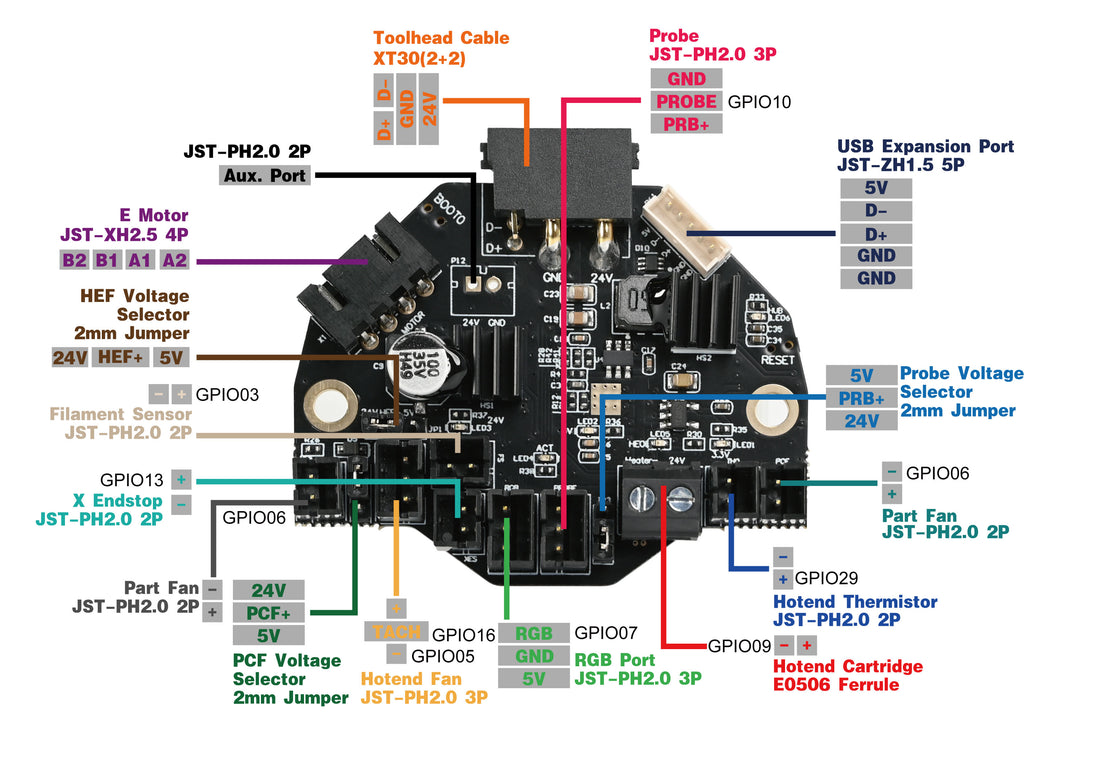

- Convenient wiring, no more complicated and error prone breakout cables – Nitehawk only requires 24V power and a USB connector to the RPI host.
- USB Klipper connection, no additional software or hardware setup compared to CAN.
- Secondary USB port, an onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable.

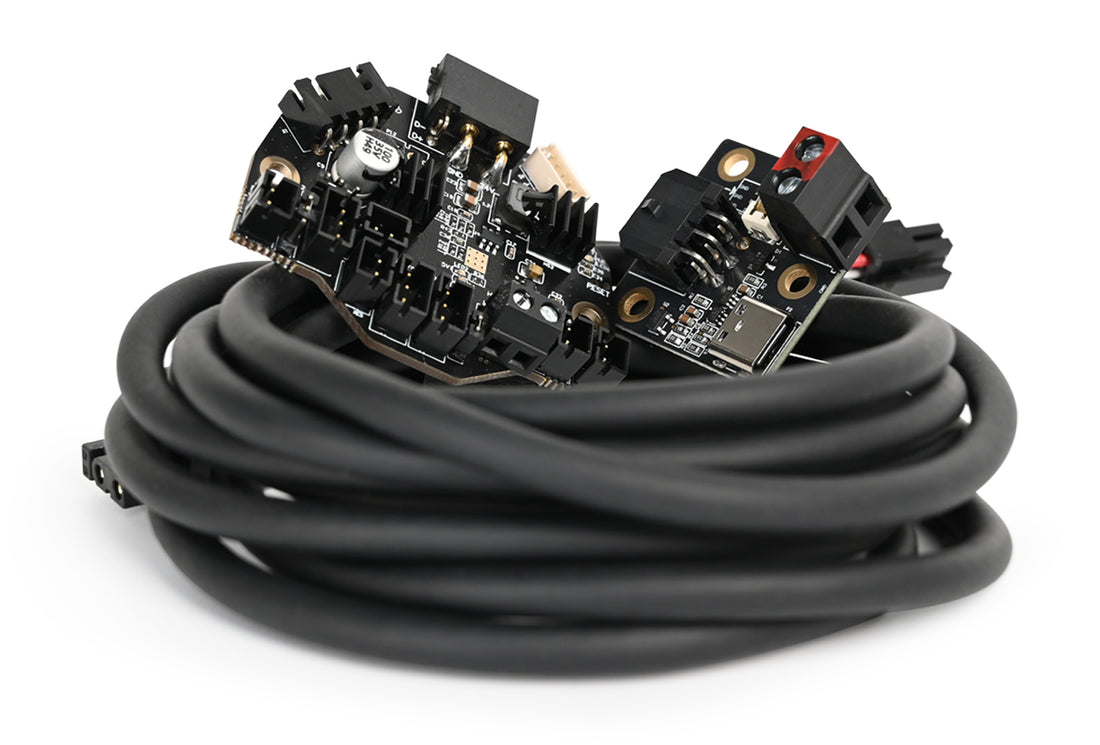

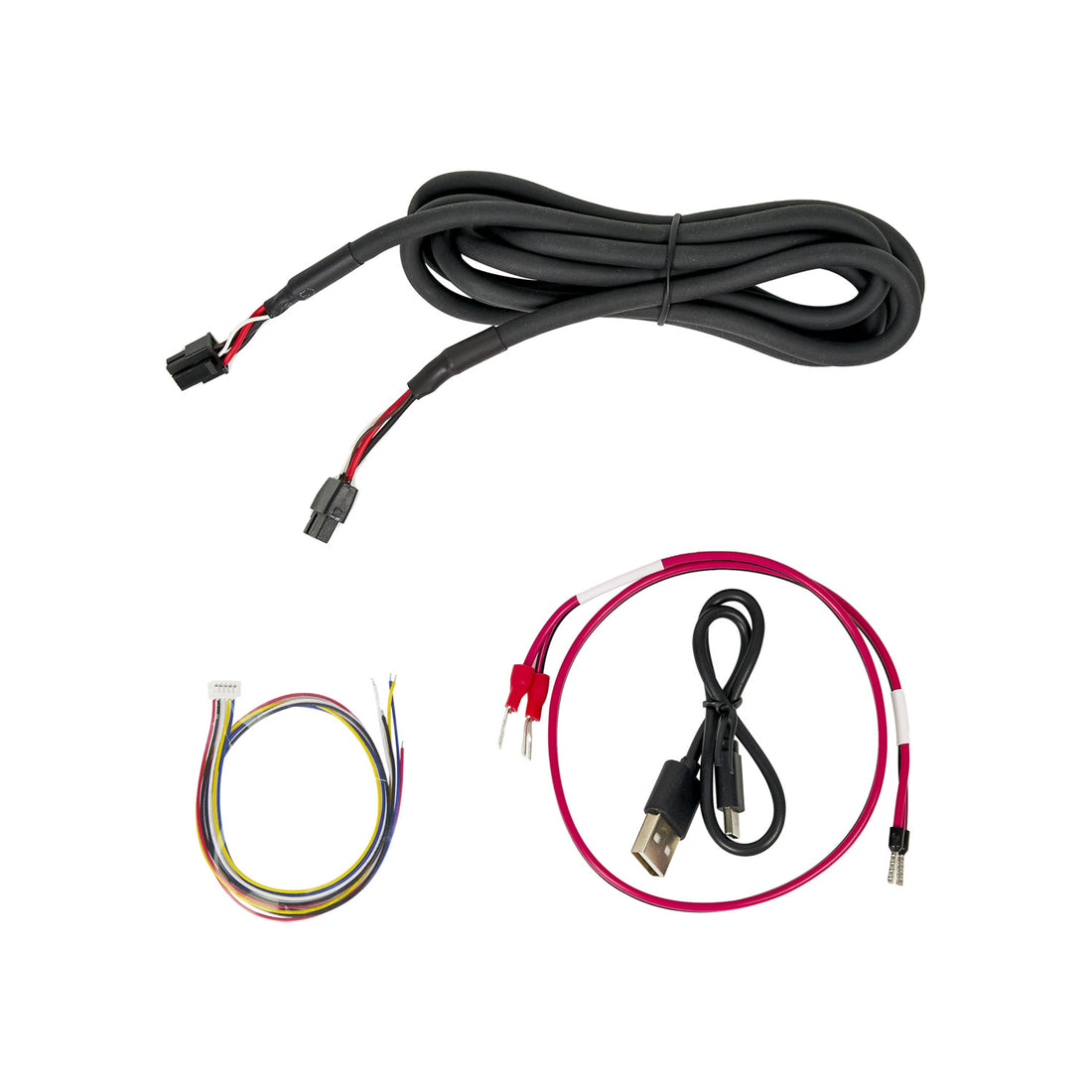

- Custom toolhead cable, a single combined USB data and power cable rated for drag chain use, but can also be used in umbilical configuration.
- Convenient Input Shaping, run input shaper calibration at anytime with an onboard accelerometer.
- Tacho enabled HEF, the hot end fan port is three pin tachometer compatible, allowing for additional diagnostics and safety.
Links:
Nitehawk-36 Toolboard | LDO Documentation (ldomotors.com)
GitHub - MotorDynamicsLab/Nitehawk-36: A USB toolboard for the Toolheads with 36mm Pancake Motors
