What is it

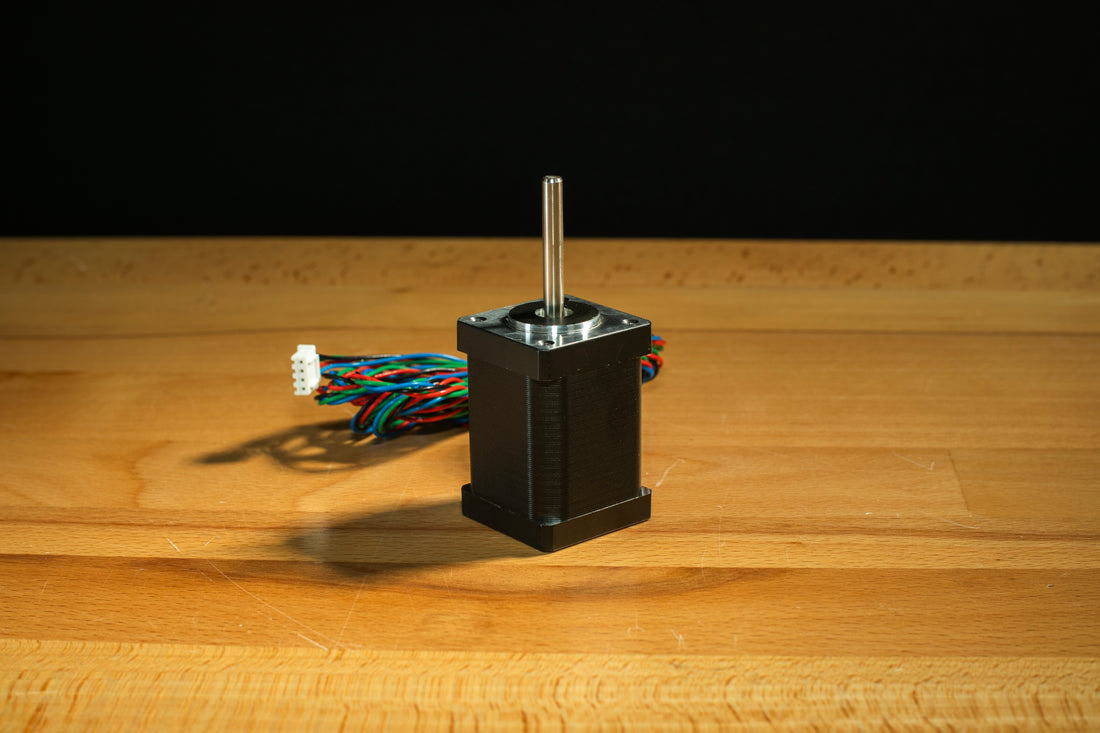

Custom LDO motor with 35mm shaft and 2 A rating

Features:

• 35mm shaft

• 2A rated
• Holding Torque: >=0.4 Nm

Raw Specs

• Frame Size: NEMA14(35mm)

• Phase: 2

• Coil Type: Bi-Polar

• Step Angle: 1.8° +/- 5%

• Rated Current: DC 2A/Phase

• Holding Torque: >=0.4 Nm

•  Resistance: <= 1.34 Ohms ±10%@20℃

• Inductance: <= 2.1 mH Typ.

•  Rotor Inertia: <= 40 gcm²

• Shaft: Single Front

• Shaft Length: 35mm

• Front Shaft Flat Length: 30mm

• long flat Front Shaft Diameter: 5 mm

• Connection: Plug for JST-XHP-4, Black

• Terminal Number:4

• Wire Harness:2000±10mm,AWG24,UL1332

• Insulation Class: H(180°C)
