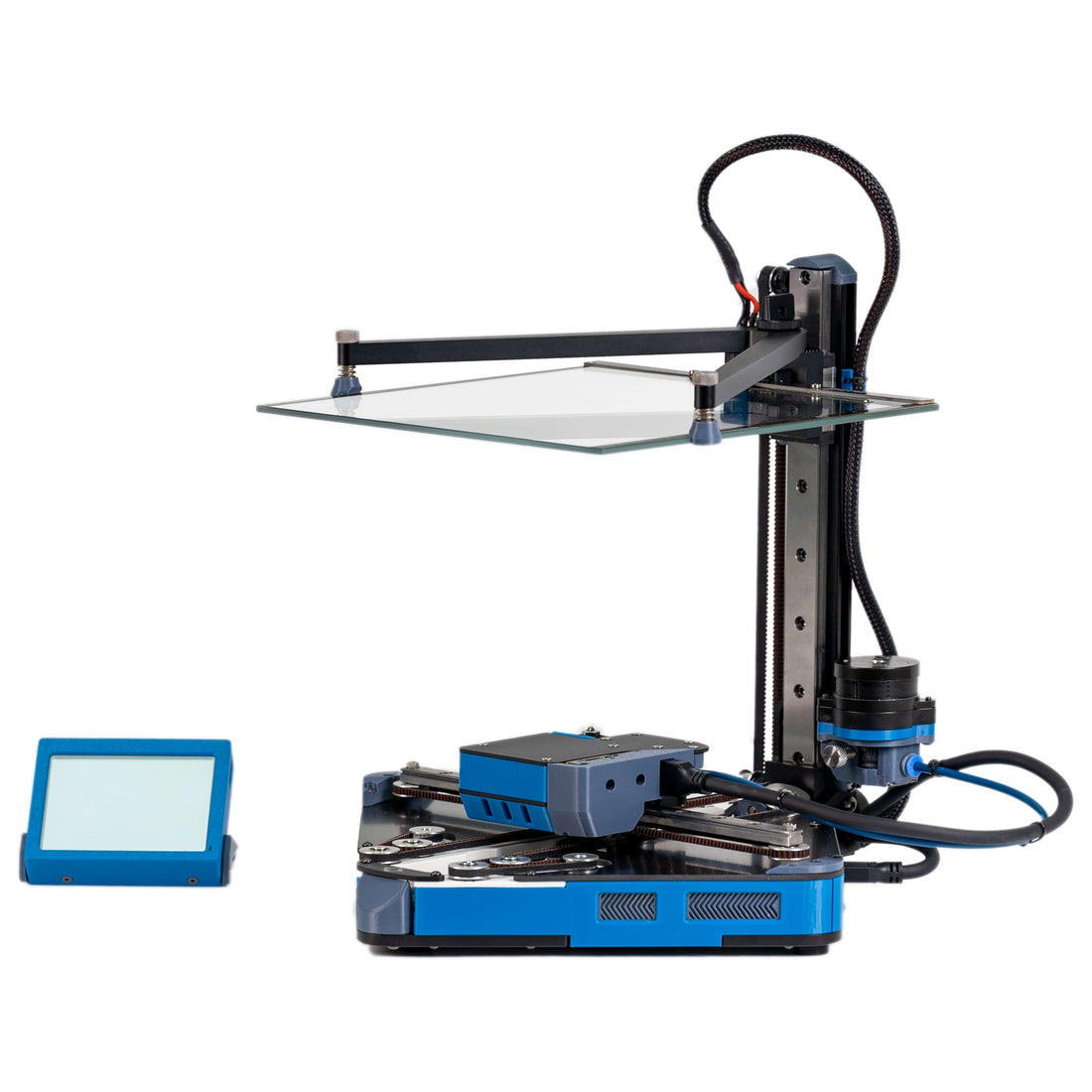

Positron V3.2 3D Printer Kit by LDO

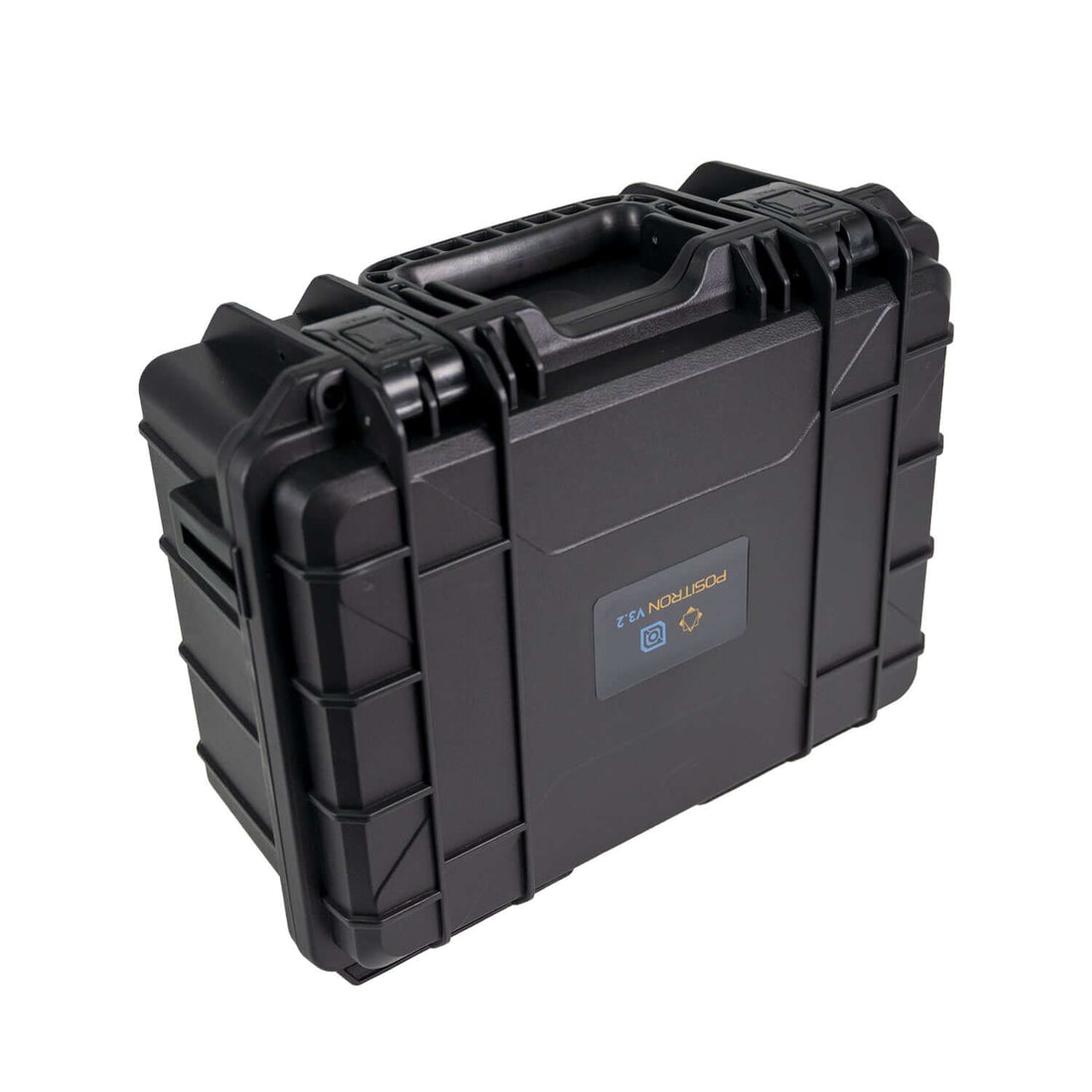

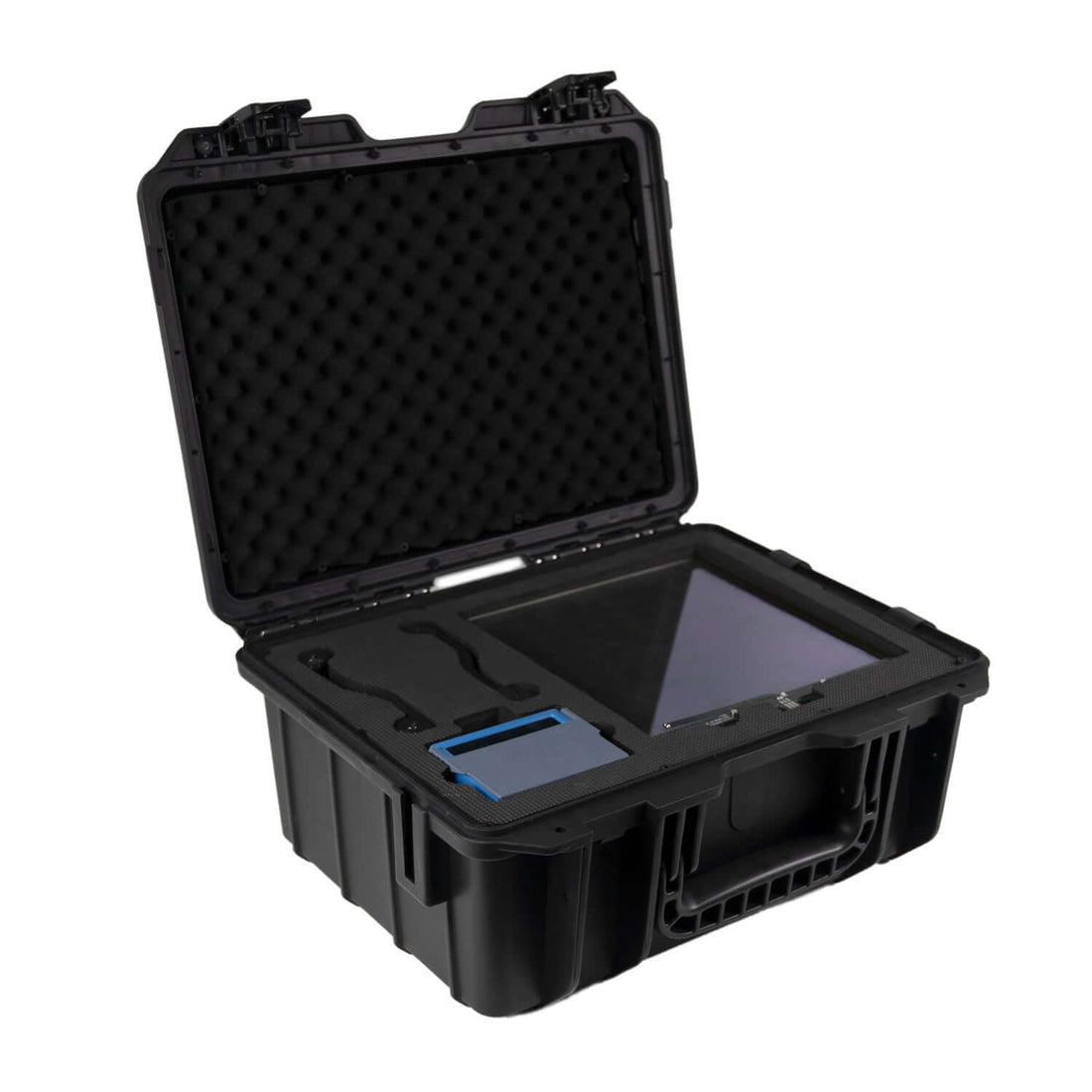

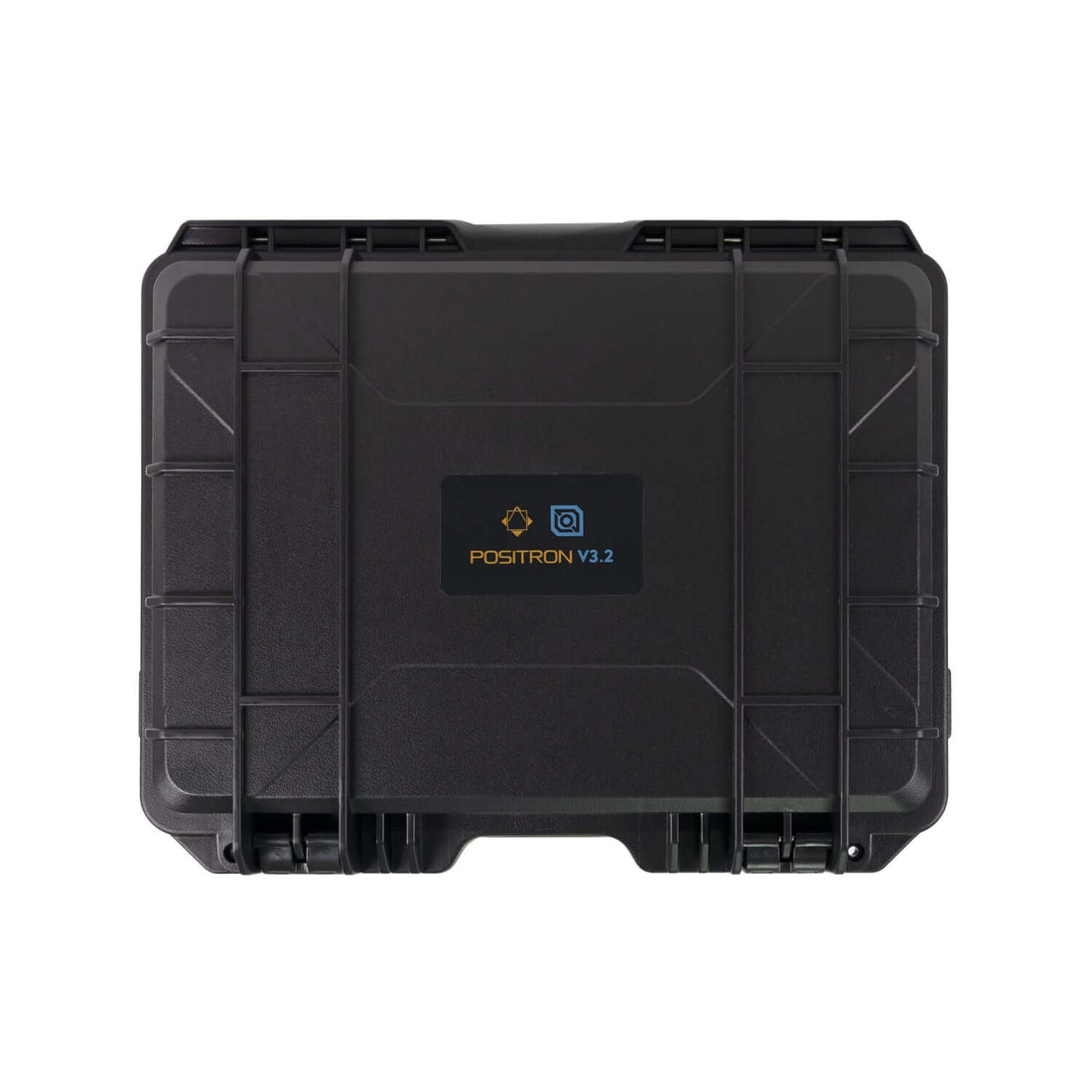

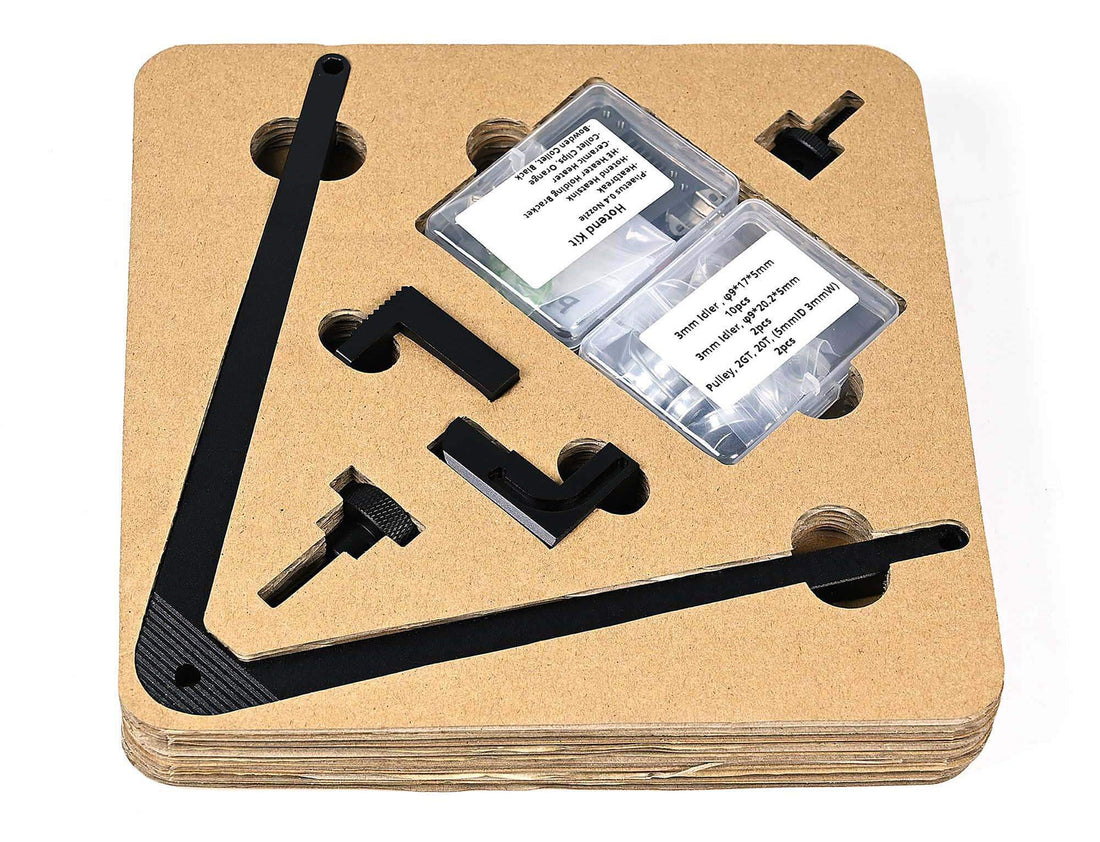

Positron V3.2 foldable 3D printer designed to fit inside a standard filament box. Kit comes ready to assemble and includes a hard Pelican plastic travel case.

Innovative Design

The Positron V3.2 3D Printer Kit by LDO is the ultimate portable 3D Printer for those who need printing on the go — whether you're in the office, at a job site, or traveling the world.

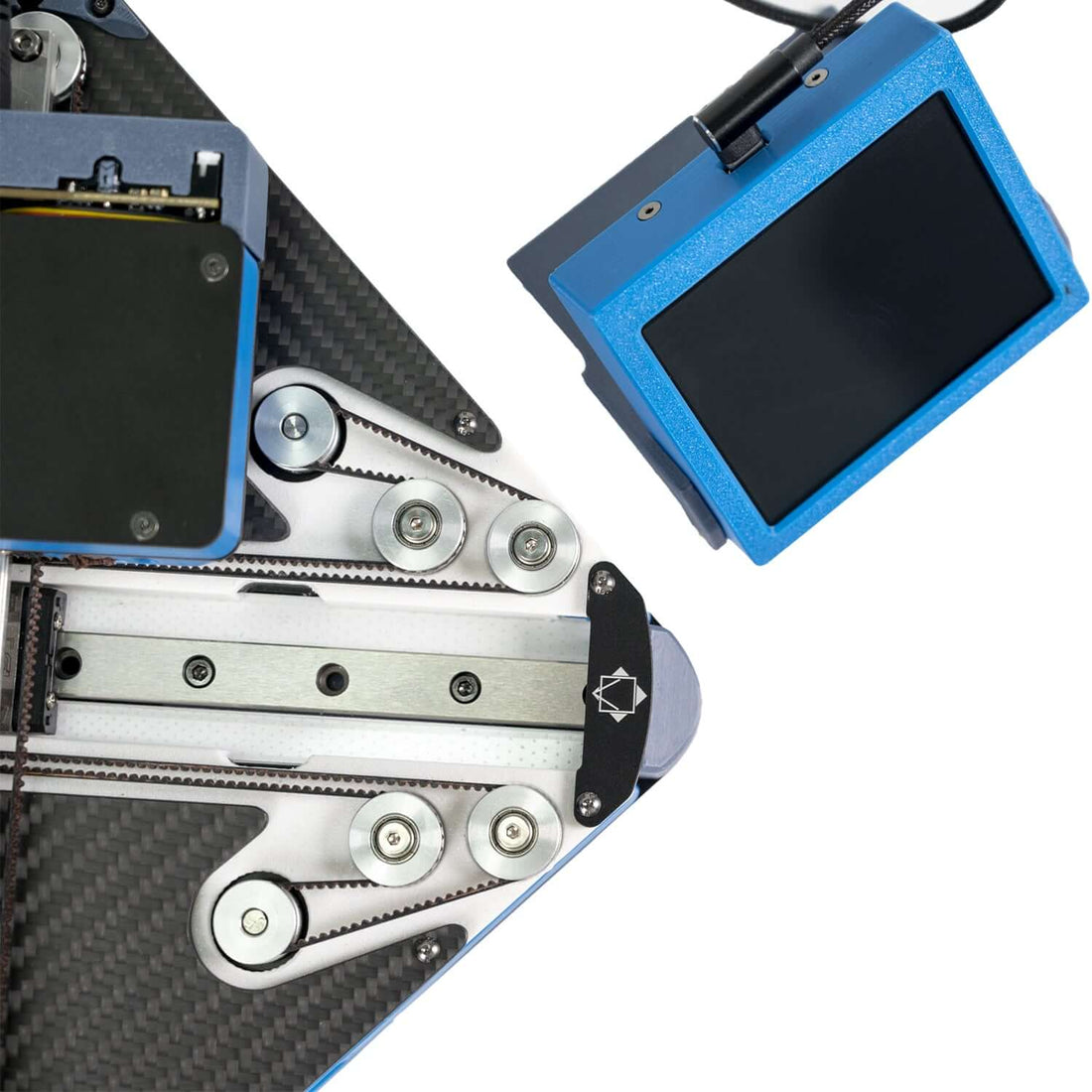

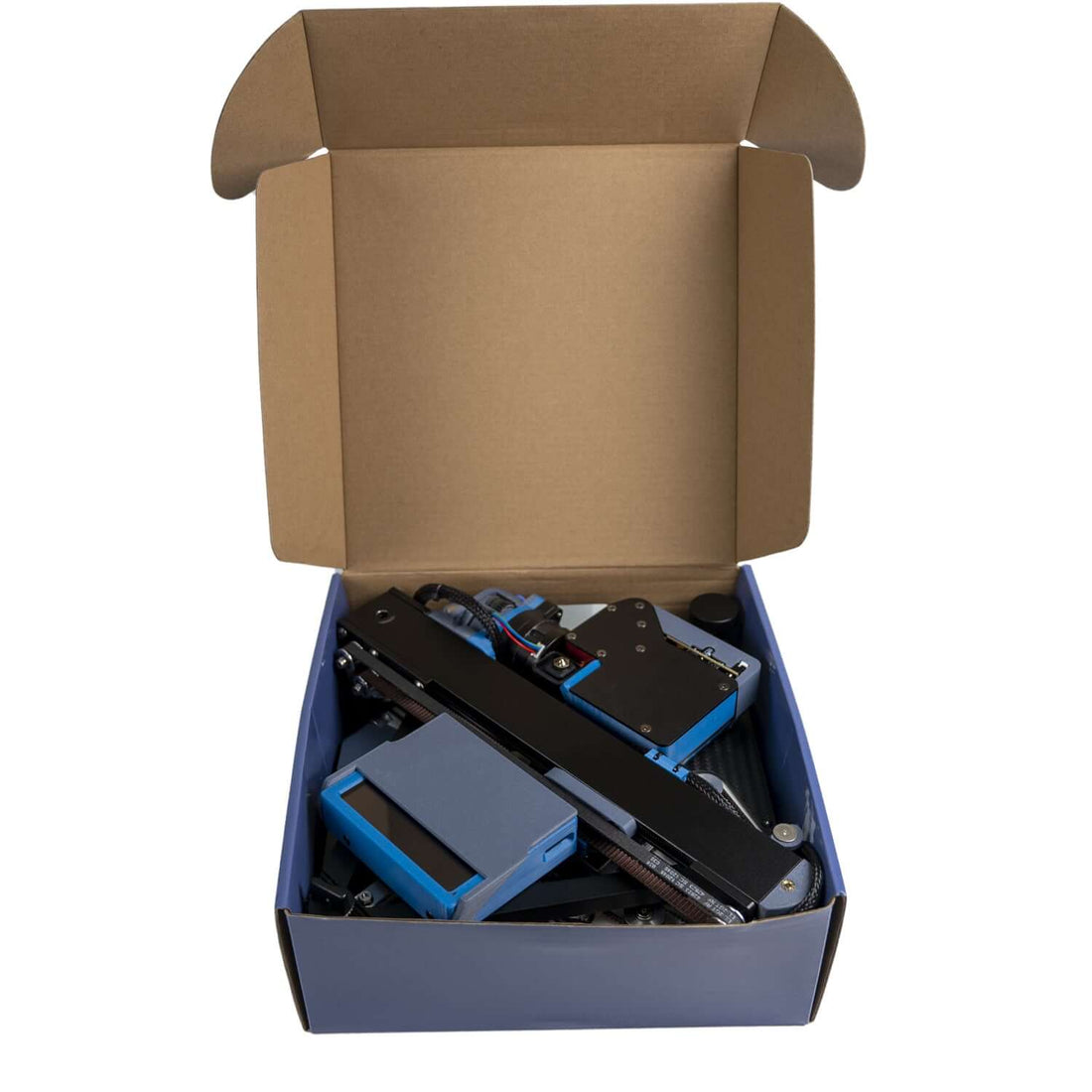

• Compact and Portable: The Positron fits into a standard filament box and features a clever kinematics system that maximizes its 180mm³ build volume while printing upside down.
• Quick Deployment: Go from folded to ready to print in just about a minute.
• Travel-Friendly and Airport-Ready: The Positron has passed through major U.S. airports without issue when TSA guidelines were followed. Travel with peace of mind, but be sure to adhere to specific checkpoint instructions.
• Low Power Consumption: Runs on a 24 Volt, 200 Watt power supply, making it ideal for printing on the move — on a boat, in a van, or even on a cruise ship.

Customization and Connectivity

• Expandable Main Board: Add a Filament Runout Sensor, integrated PSU, extra cooling, and more to tailor The Positron to your needs.
• Connectivity Options: For loading prints via Wi-Fi, Ethernet, or mass storage, regardless of how busy the venue is, you can always rely on USB and Ethernet connectivity!
• We Use Klipper!: Using Klipper, this printer is your own! Customize the macros to make it do whatever it is you want, we made sure that all of the RGB lights are fully addressable.

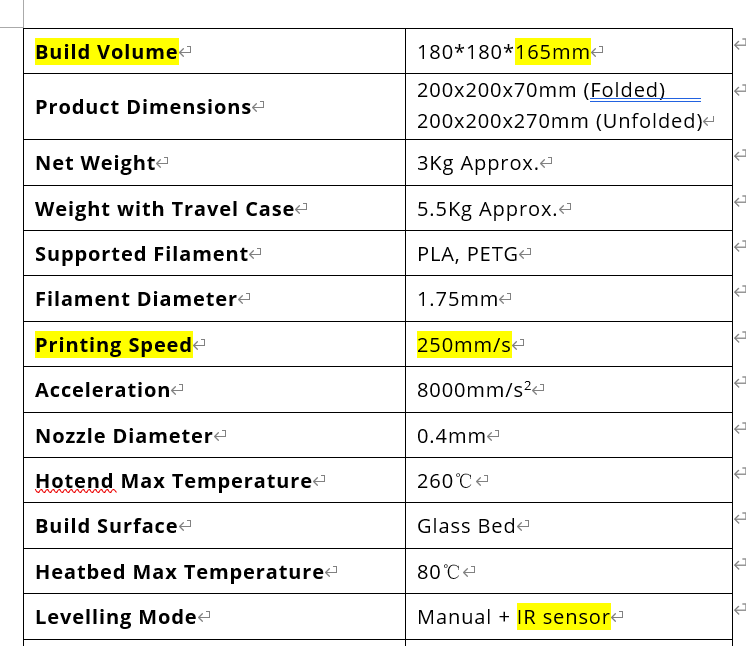

Specifications

• Build Volume: 180*180*170mm

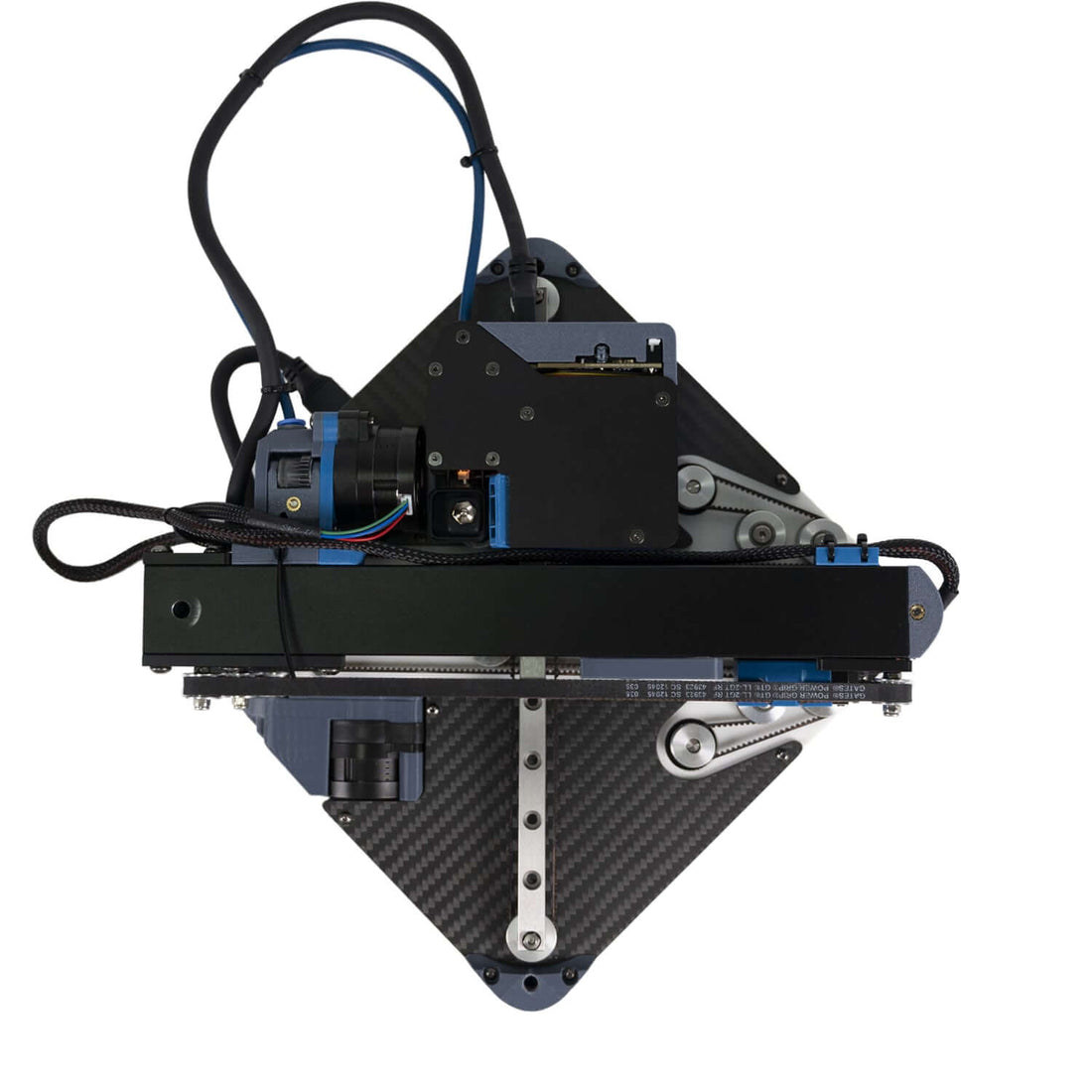

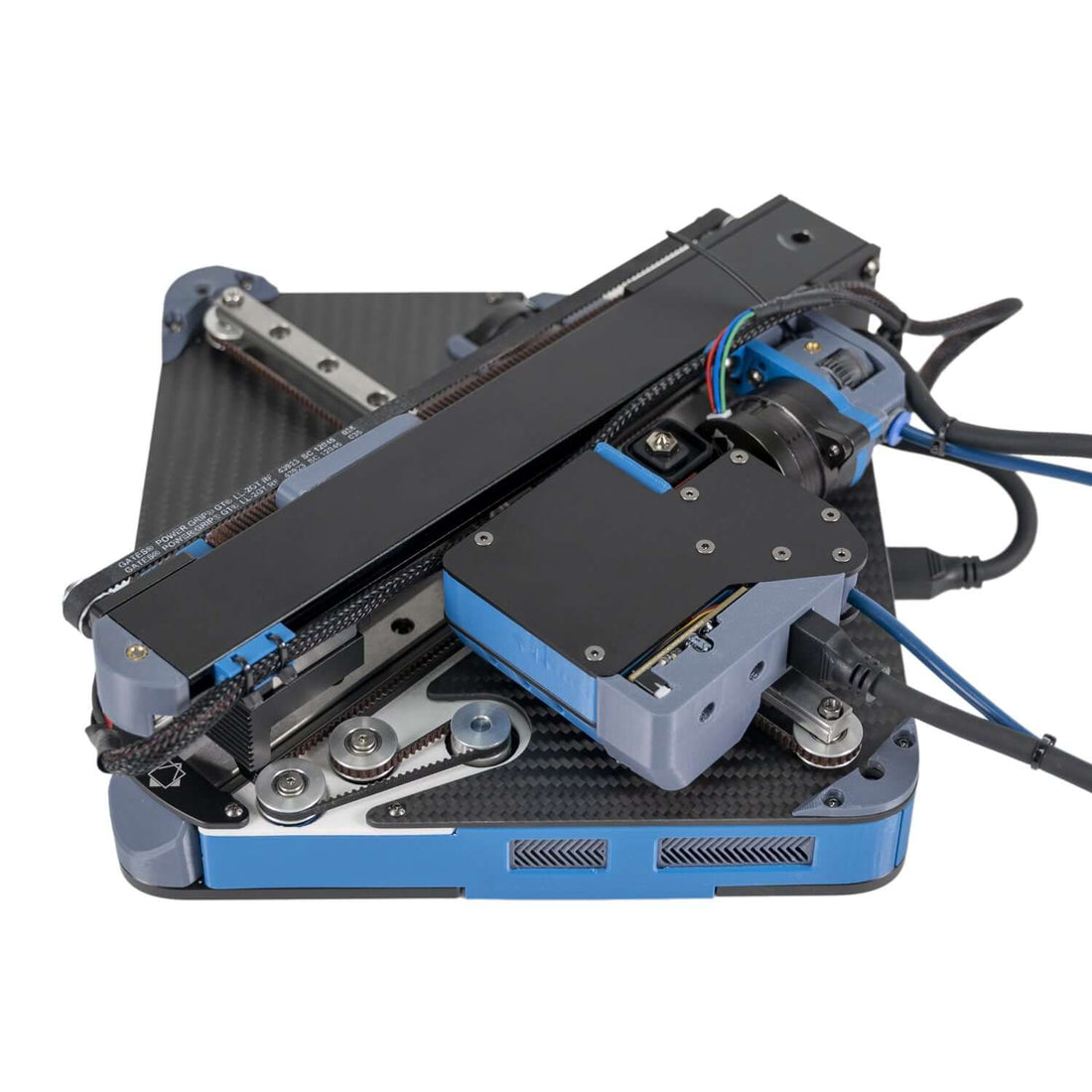

• Product Dimensions (folded): 200x200x70mm

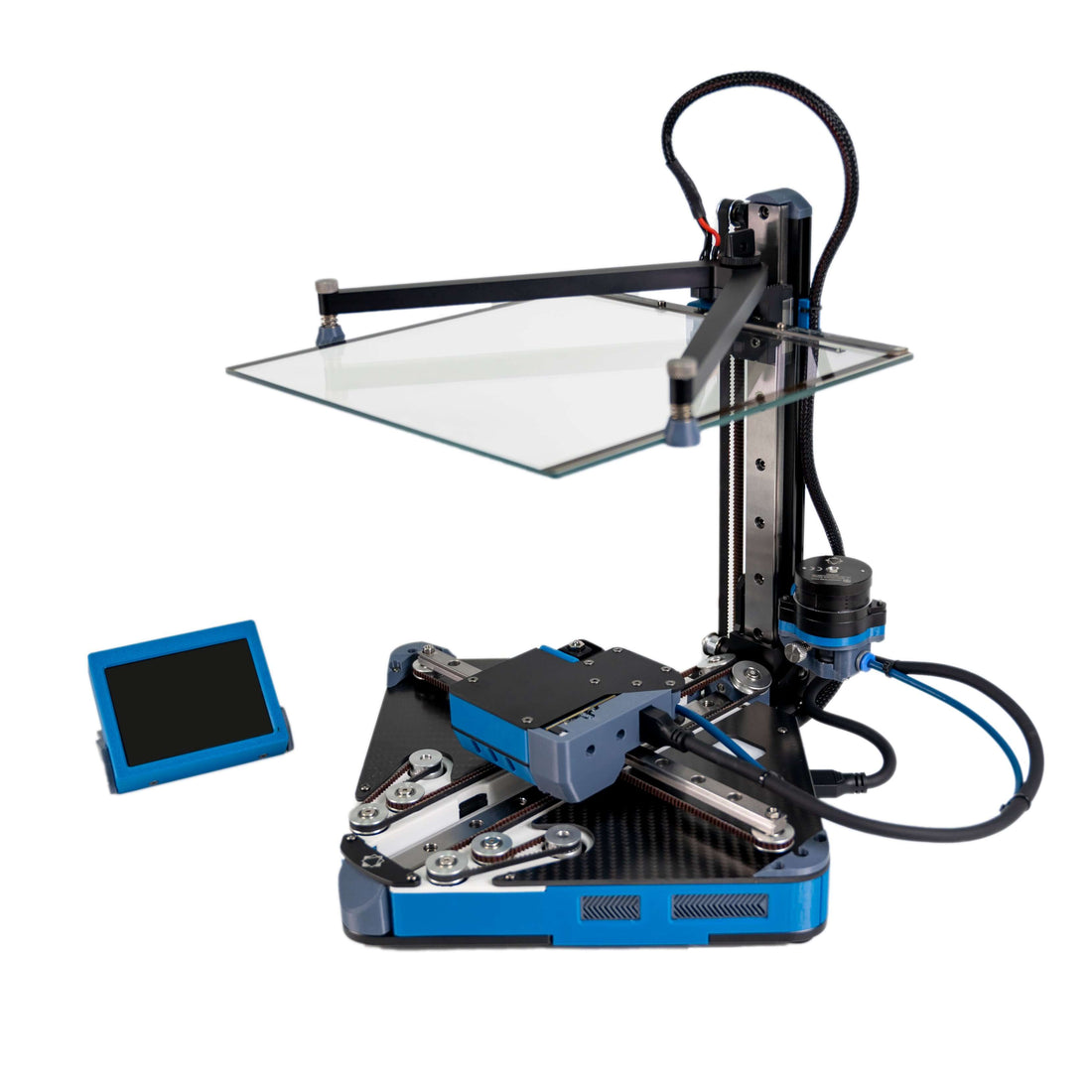

• Product Dimensions (unfolded): 200x200x270mm
• Net Weight: 3Kg Approx.
• Weight with Pelican Case: 5.5Kg Approx.
• Supported Filament: PLA, PETG
• Filament Diameter: 1.75mm
• Printing Speed: 400mm/s
• Acceleration: 8000mm/s2
• Nozzle Diameter: V6 type 0.4mm
• Hotend Max Temperature: 260C
• Build Surface: Glass Bed
• Heatbed Max Temperature: 80C
• Levelling Mode: Manual

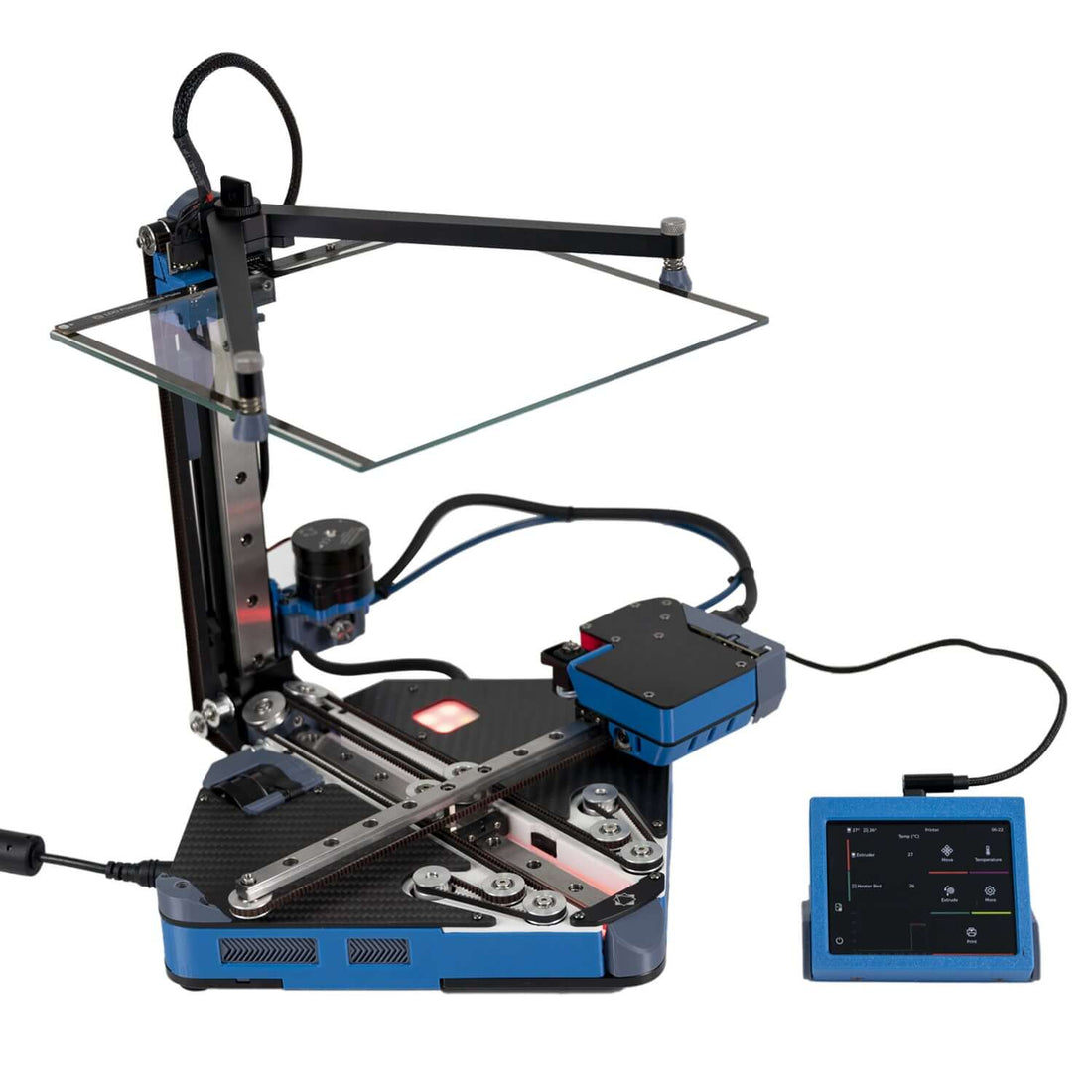

• Display Screen: 3.5” LCD Capacitive Touch Screen
• Power Supply: Desktop 24V 200W
• Slicing Software: Superslicer, OrcaSlicer etc.,
• Firmware: Klipper
• Raspberry Pi: CM4
• Controller Board: Customized LDO Positron Mainboard

Join the Community

Explore more about The Positron and join the Wiki and Discord at https://positron3d.com/. Share your projects, learn from others, and collaborate to push the limits of 3D printing.

Enjoy the freedom and versatility The Positron offers. Have fun, and let's print different!
