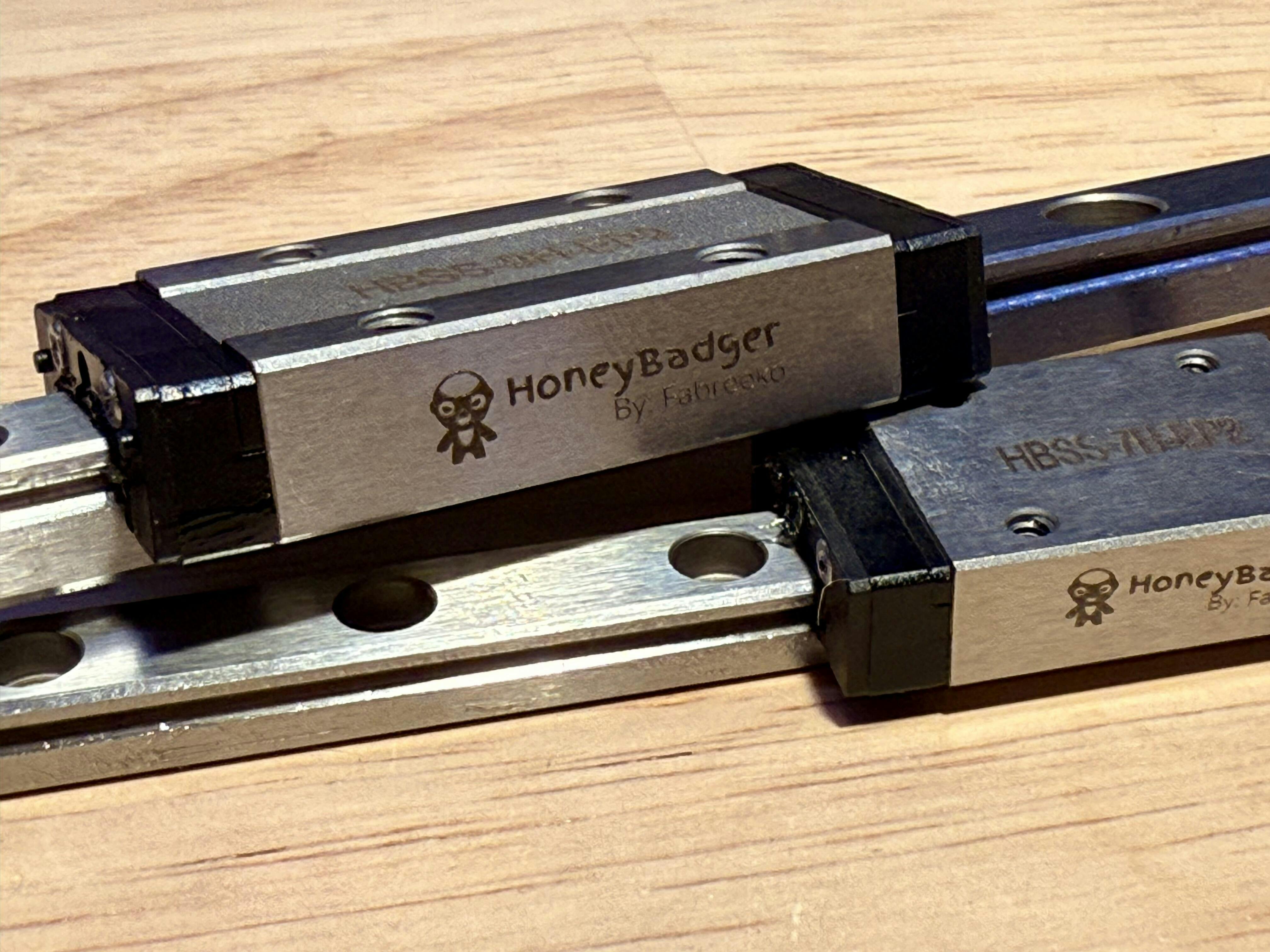

HoneyBadger MGN9H Stainless Steel Rails
HoneyBadger MGN9H Stainless Steel Rails
- MGN9H rails with medium-high custom preload for improved performance
- New! Class H Rails to ensure more a consistent and better out of the box experience (more details below)
- Rails are pre lubed with EP2, once broken in our rails will work smooth and tight. there's no need to soak them in IPA or degreaser just top off the EP2 grease via the grease port and your are good to go!
- 440c Hardened Stainless Steel construction for longevity and thicker 6.5mm guides
- Spare parts available, Lost a carriage? missing some balls? no need to buy a whole new rail, parts will be available to perform maintenance or in case of accidents.
-
Problems? we stand behind our HoneyBadger rails and provide a one-year no-questions-asked warranty for peace of mind.
Notes: Please note that the carriages are made into the rails. They are not interchangeable.
Class H QC requirements:
- straightness tolerance of the guide rail is within 0.01mm per meter, and the symmetry of the R groove on both sides of the guide rail and the slider is within 0.002mm.
- The height (H) of the final assembly is less than 0.02mm.
- The total length of the guide rail and the end distance at both ends are within +/- 0.15mm. EDM precision cut
- The change in parallelism of the finished rail is less than 0.016mm per meter
Revision history
- initial launch, Dry and clean assembly, high preload 440c
- Gen 2, ep2 added, new model designation on top high preload
- Gen 2.5, preload tweaked to medium-high
- Gen 3 introduced Class H quality control, added a 2 stage washing before assembly to avoid unwanted particles, tweaked guide wiper alignment. -Now shipping
Backed by our 45-day no questions asked return policy.
Customer Reviews
Great rails but one of the rails arrived with a slight ding in it. I didn't notice it until I mounted it and noticed it was sliding rough in one spot.... That's when I noticed there was a damaged spot in the rail.
Hey Kamil!
Very sorry about this, sometimes they get dmall dings while in transit from the factory to our warehouse. No worries, we will send you a a replacement rail and tracking information asap!
-Hector
I'm not enough of an expert to tell how much better these rails might be compared to what might come with an overseas kit. One day I hope to do some testing on the true differences, but for now I've always heard not to skimp on rails. So I didn't. These came clean and relatively smooth. The grease port makes it convenient to lube up now and in the future. Once greased the preload seems nice and tight. Good, solid rails.
Quick shipping, had a delay with the carrier but no fault of fabreeko! Awesome service!
Great linear rails highly recommended
