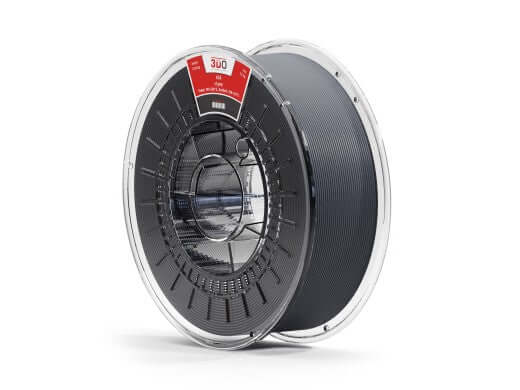

3DO ASA CF 1 KG Gray limited run - Carbon Fiber Gray
3DO ASA CF 1 KG Gray limited run - Carbon Fiber Gray
What is it
3DO ASA is a UV-resistant and weatherproof copolymer designed for industrial uses.
It has a high level of process dependability and is well suited for mechanically stressed components. It's an electrically insulating substance.
The layer adhesion, thermal stability, flow characteristics, and warping tendencies of 3DO ASA have all been optimized.
The raw material has been authorized in accordance with REACH, RoHS, and FDA regulations.
- Nozzle: 230-250°C
- Heatbed: 100-110°C
- 1 KG rolls
This product has 15% carbon fibers, it's recommended to use a >0.5mm harden steel nozzle like the bozzle
Colour - Gray Carbon fiber
- Made in EU
- Good strength
- Good mechanical properties
- Good chemical resistance
- Flame retardant (UL94 HB)
- RoHS, Reach, FDA compliant
|
Properties |
Method |
Unit |
Value |
|
Tensile modulus (E-Modulus) |
ASTM D882 |
MPa |
2200 |
|
Tensile strength |
ASTM D882 |
MPa |
49 |
|
Flexural strength |
ASTM D882 |
MPa |
78 |
|
Nominal elongation at break |
ASTM D882 |
% |
20 |
|
Notched impact strength |
ASTM D256 |
kj/m² |
140 @ 23°C |
|
VICAT A (VST) |
ASTM E2092 |
°C |
96* |
|
Melting temperature |
ISO 3146-C |
°C |
180-200 |
|
MFR |
ASTM D1238 |
g/10min |
20 |
|
Shrinking |
ASTM D955 |
% |
0,4 |
|
Density |
ASTM D792 |
g/cm³ |
1,05 |
