Turtle Crawler FRAKS Flexarm heat insert press kits

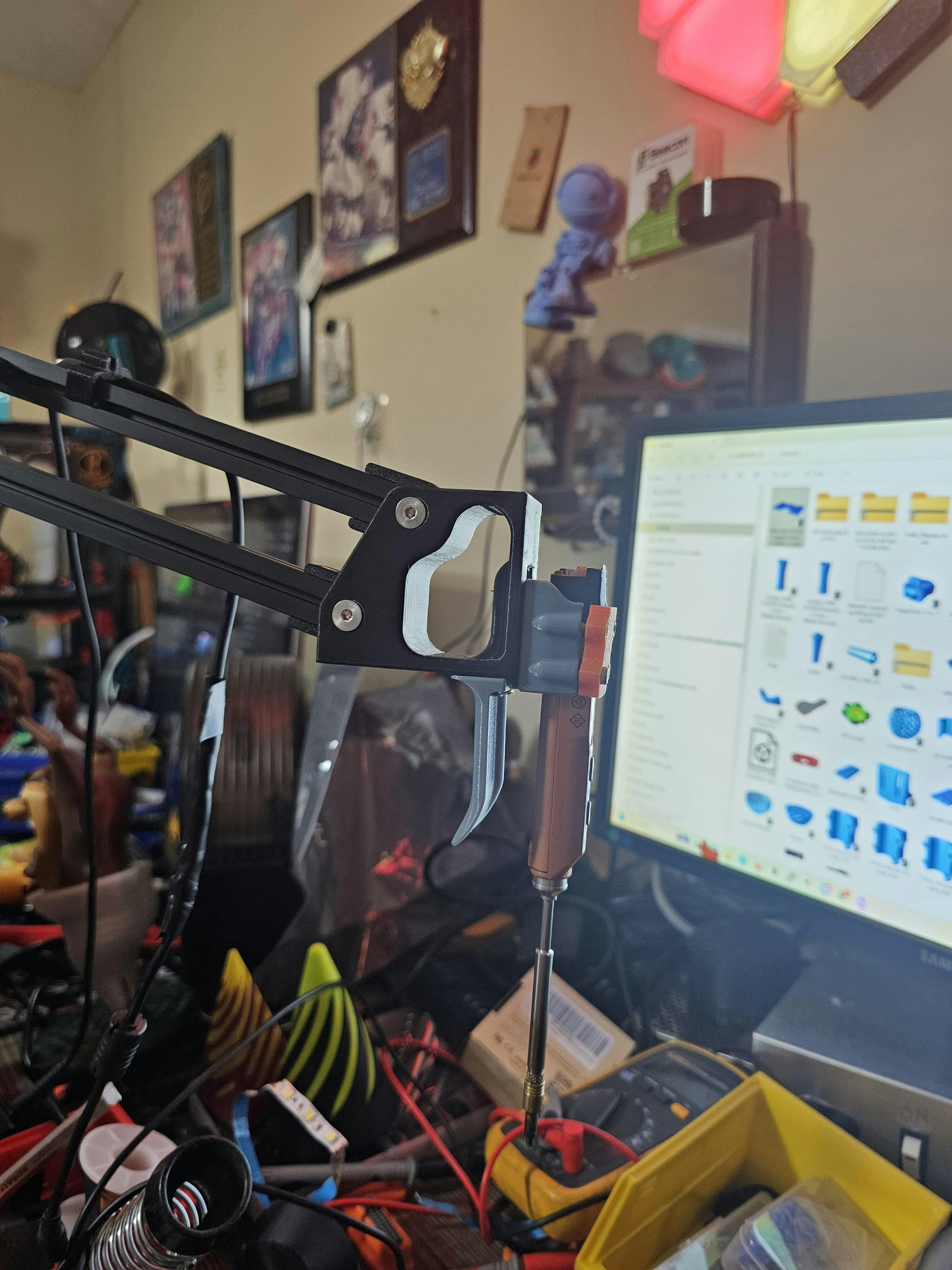

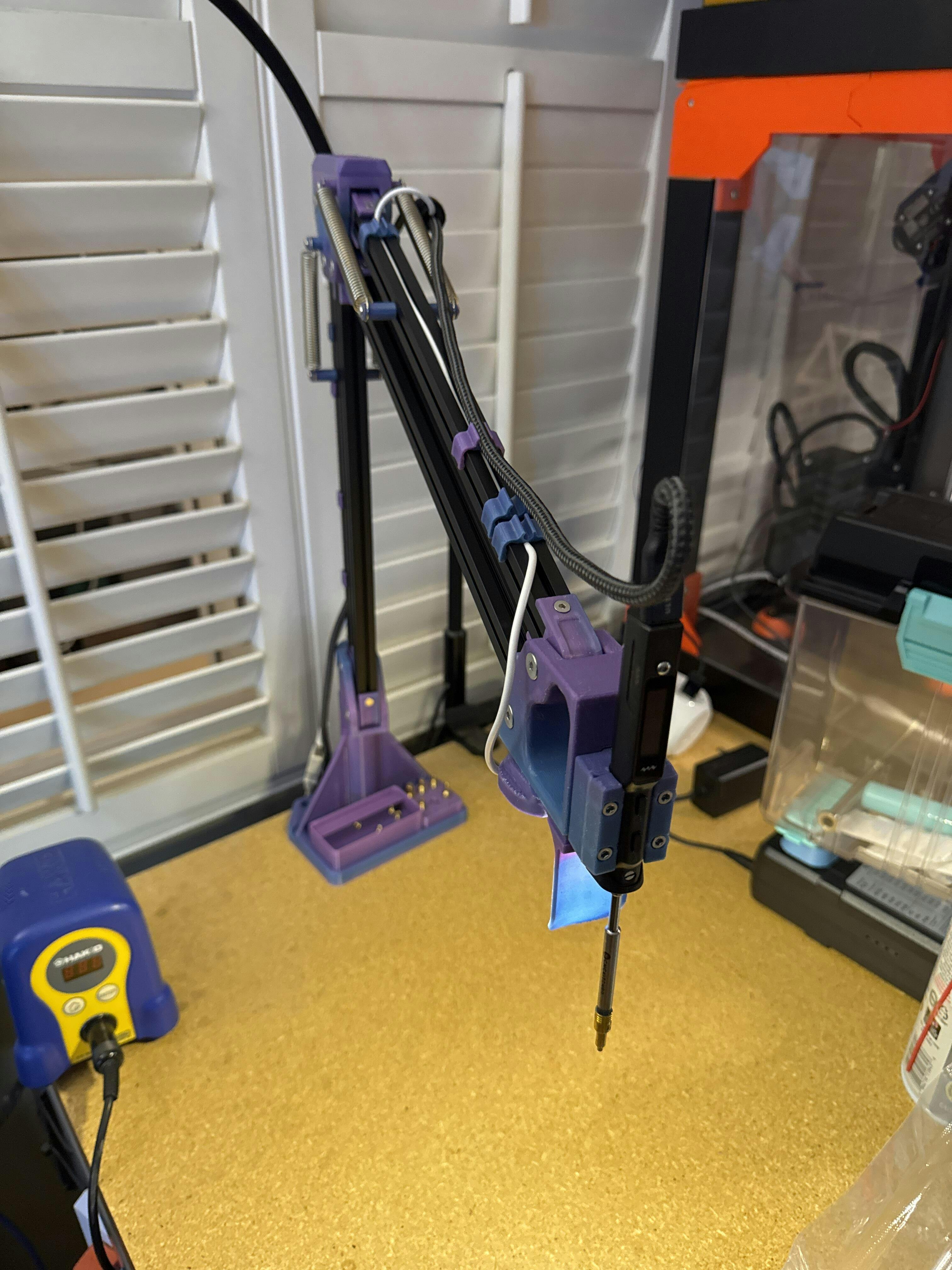

the Fraks Flexarm is a tool-balancing arm designed to keep the attached tool parallel throughout its movement. It was created to hold soldering irons to install heat set inserts into 3D printed parts.

It has a large working area for its size, and has quick release tool holders that are held in place with magnets.

Thanks to Zack Freedman for making Gridfinity an open source project, I have included Gridfinity storage into the base. You can read more about Gridfinity at https://gridfinity.xyz/

Preorder info: these are expected to arrive by mid-late March



Whats in the kit

1515 Extrusion 300/350/400mm (All the same length) 4 1515_Extrusion
10mm OD x 1mm Wire Gauge x 60mm Long Extension Springs 4 10X1X60_Spring
10mm x 100mm long Pin 1 Pin
10mm ID x 14mm OD x 30mm Length Brass Bushing 1 10x14x30_Bushing
10mmx24mm Washer 1 10x24x1_Shim
M3x8 FHCS 16 M3x8_FHCS
M3x8 SHCS 10 M3x8_SHCS
M3x12 BHCS 4 M3x12_BHCS
M3x20 BHCS 4 M3x20_BHCS
M5x30 FHCS (Or BHCS) 8 M5x30_BHCS
M3 Heatset Inserts (5mm OD x 4mm Length) 10 M3 Heatset
M3 Hex Nuts 20 M3_Hex_Nut
M5 Washers/Shims (10x1) 16 M5x10x1_Shim
6x3 Magnets 6 6x3_Magnet
6x2 Magnets (For Gridfinity Base) 12 6x2_Magnet
1-1/4 #8 Pocket screws (For screwing base to table) 4 Pocket_Screw
Table Saw Fence Clamp (For clamping to table) 1 Fence_Clamp



Comes with everything but printed parts or a soldering iron

Links

GitHub - TurtleCrawler/Fraks_Flexarm: A balanced tool arm system



Fabreeko proudly supports developers! A portion of these sales will directly contribute to Turtle Crawler and his future projects, helping bring more innovations to the community
