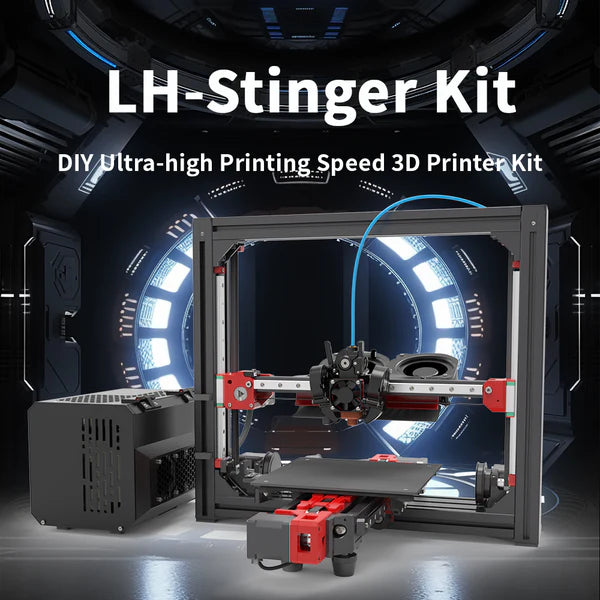

LH Stinger DIY 3D printer kit by Fysetc
Introducing the Fastest Bed-Slinger DIY 3D Printer on the Market!

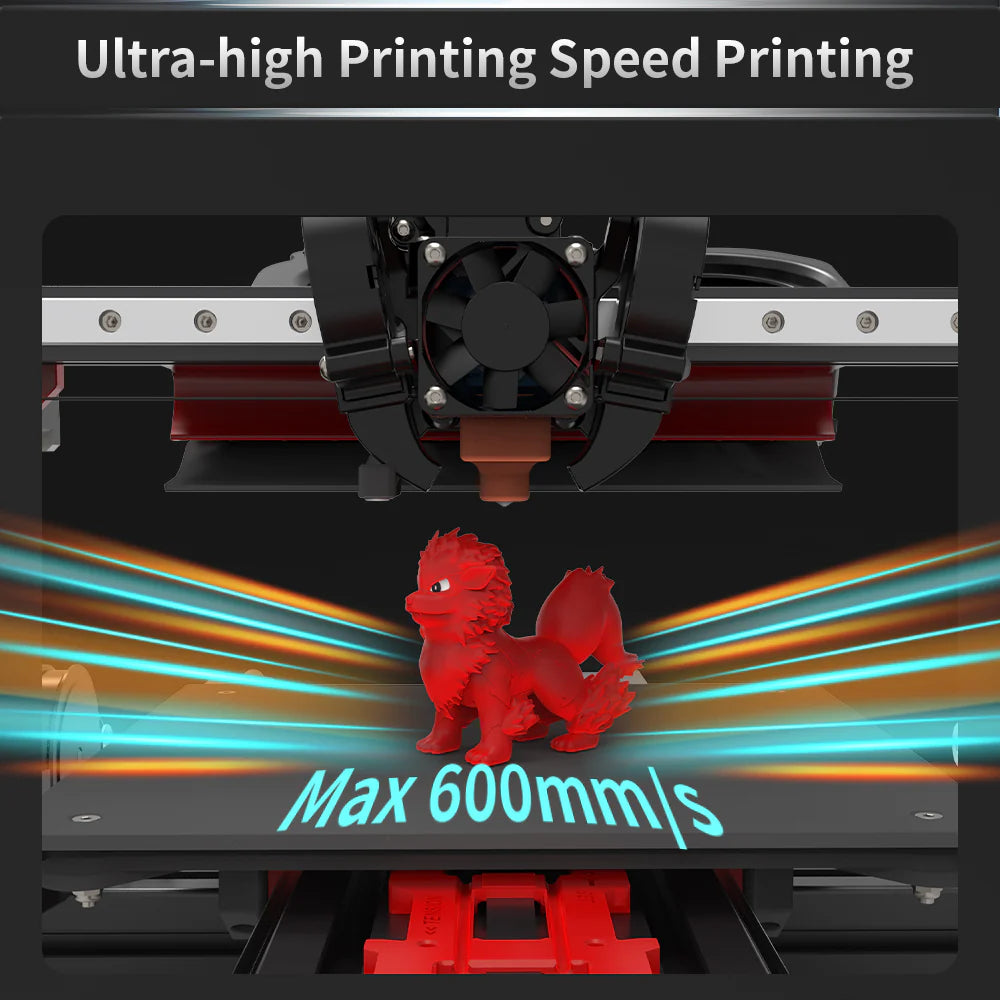

This printer combines cutting-edge materials like carbon fiber and polyimide heaters with a powerful high-torque Core XZ system and dual-motor Y-axis running at 48V. The result? Blazing print speeds of up to 600mm/s and impressive acceleration, allowing you to push the boundaries of high-speed printing.
Specs:
- 48V Power with TMC5160 Drivers (AWD Y, X Axis)

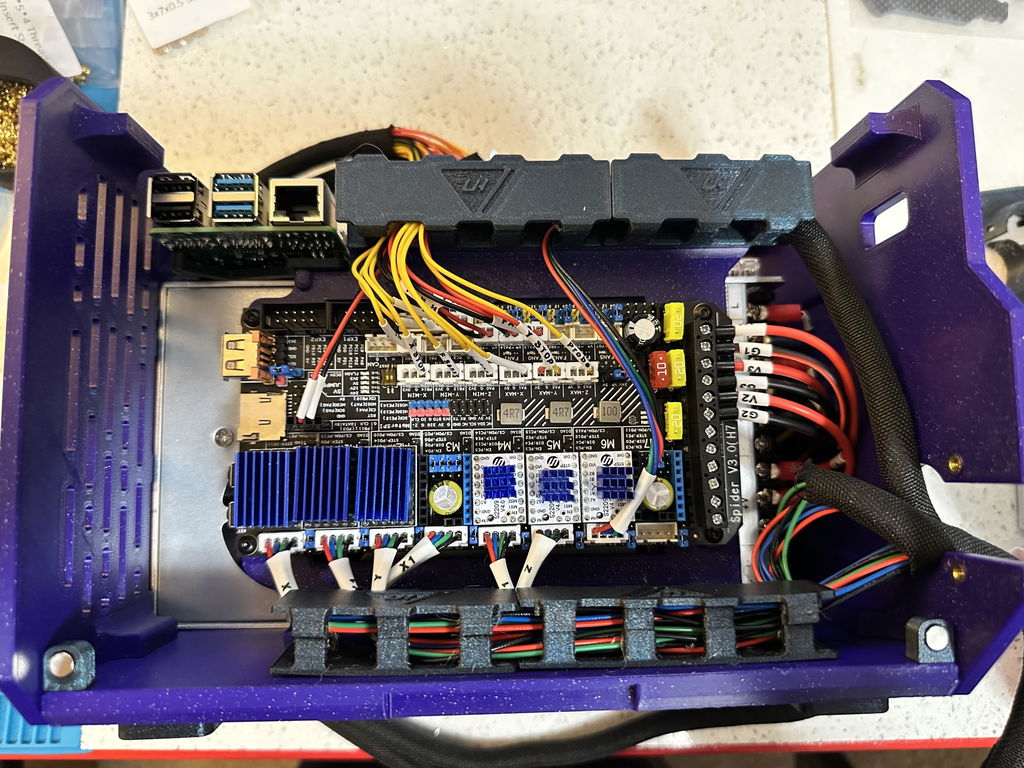

- FYSETC Spider H723 High Voltage board
- High Torque FYSETC 2.5A 580mN.m Stepper Motors
- 48V and 24V PSU

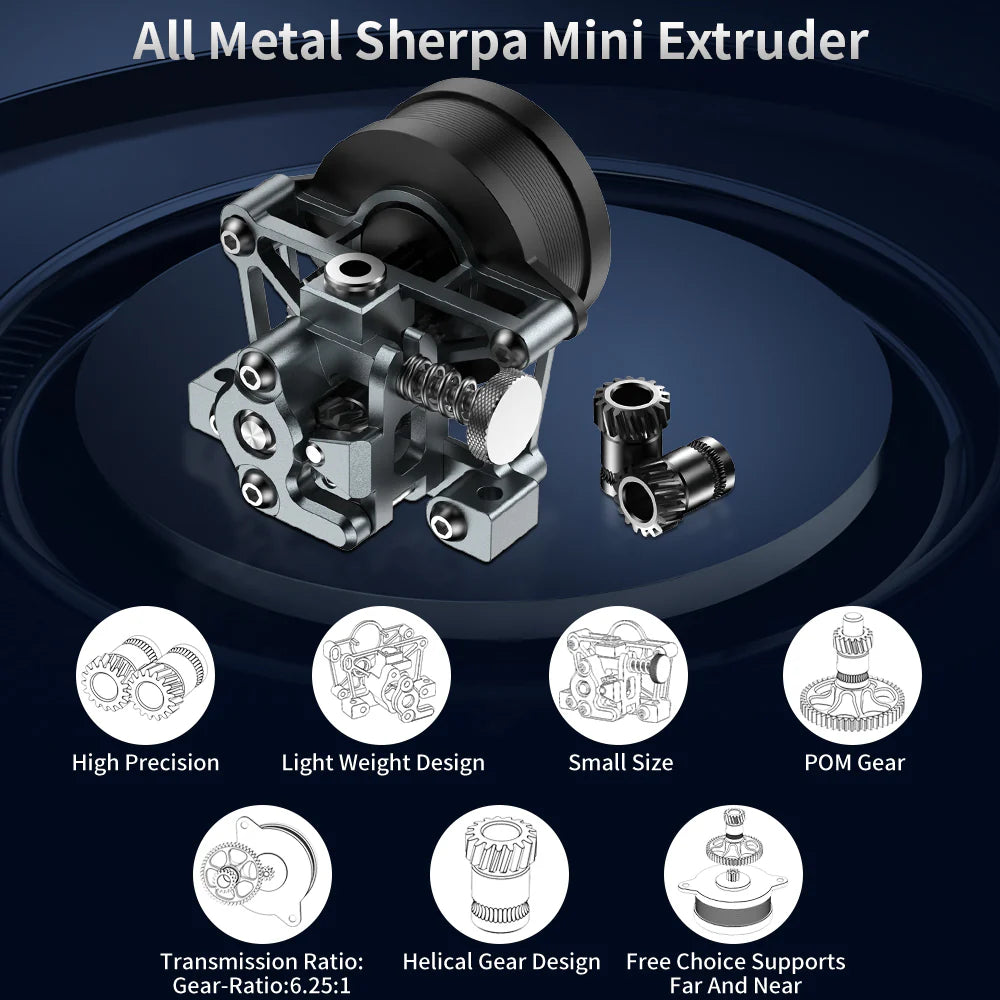

- Sherpa mini CNC Extruder

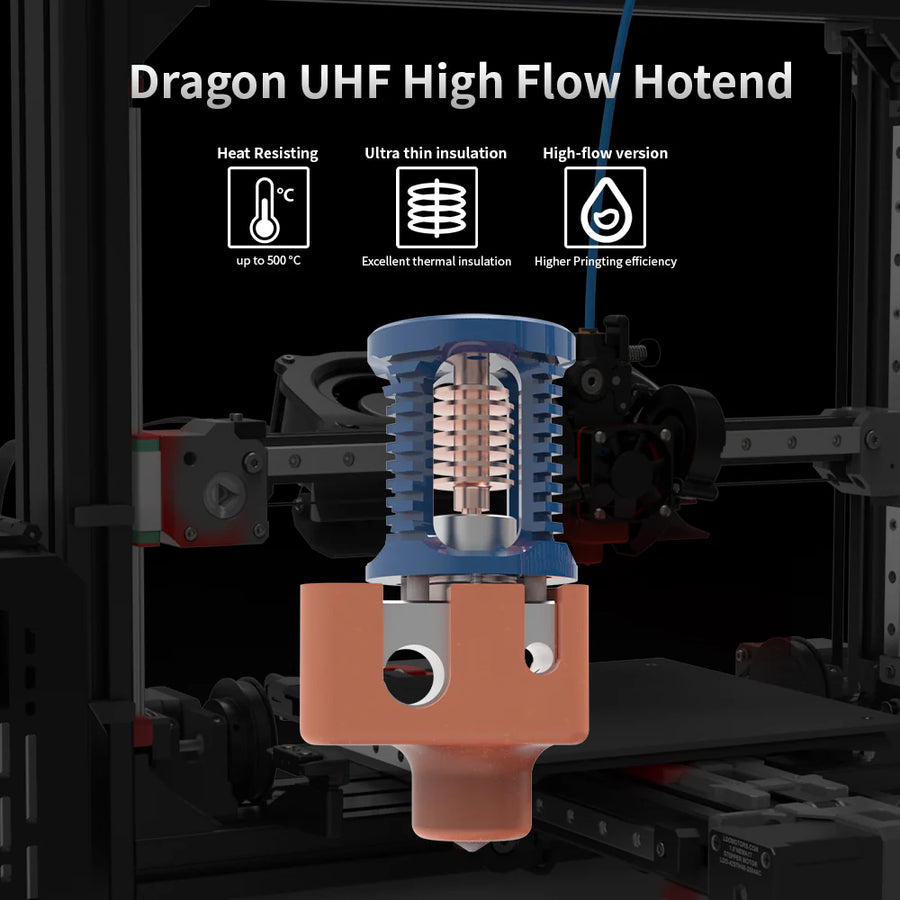

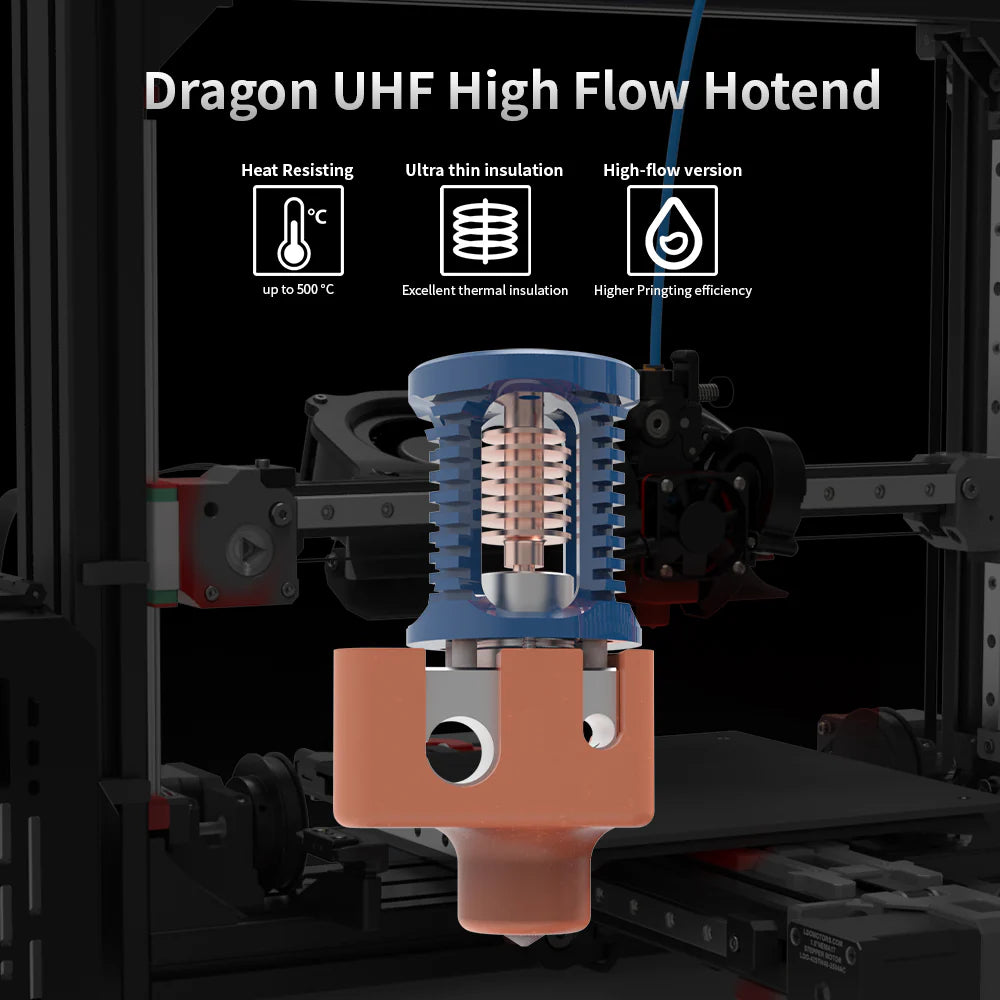

- Phaetus Dragon UHF Hotend
- Carbon Fiber Bed and Carriage Assembly
- Lightweight Polyimide 220W Bed Heater
- LHS Breakbeat (Breakout) Board and Wire Harness

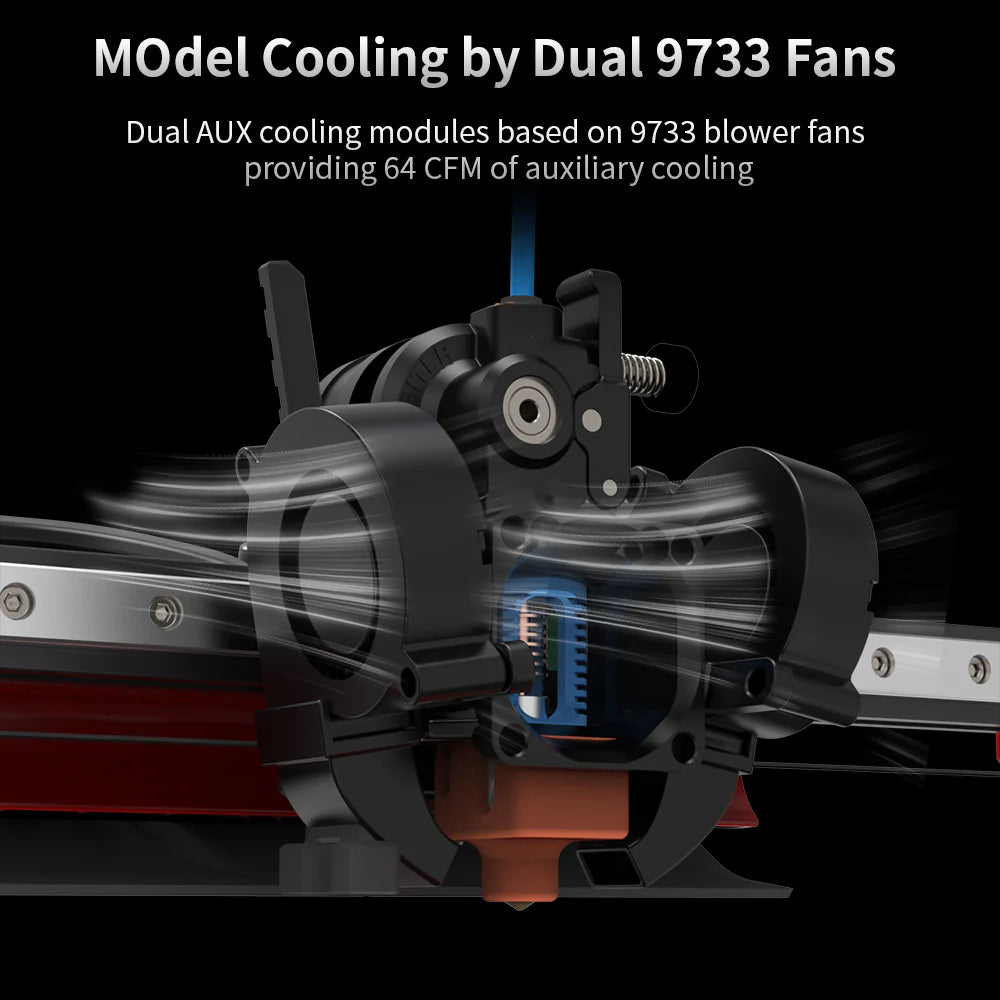

- Auxiliary Cooling System - 2x 9733 Blower Fans
- 3090 Frame Extrusions for added rigidity
- Full linear rails in MGN 12H size with Z1 Preload
What you need to source:
- Printed parts
- Raspberry pi
About the Kit:

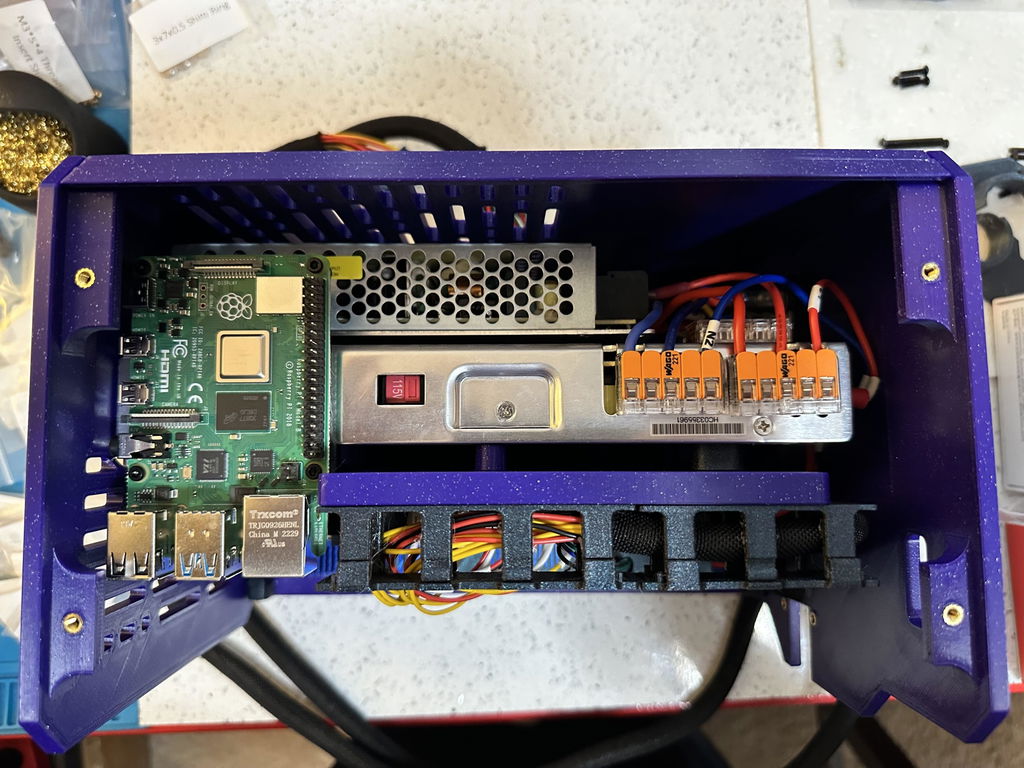

This kit features high-quality hardware, and the included wiring is pre-terminated for your convenience. The printed parts are not too complex once oriented correctly, but be prepared to use a significant amount of plastic for the electronics box components.
We recommend this kit as a 2nd or 3rd printer build. While the provided GitHub configuration is excellent and their Discord community is very active, certain steps—like synchronizing the Y motors—can be a bit challenging. However, the end result is worth it: a fast, high-quality printer.
For optimal adhesion, we also recommend applying Vision Miner to the bed.
Links
Backed by our 45-day no questions asked return policy.
Customer Reviews

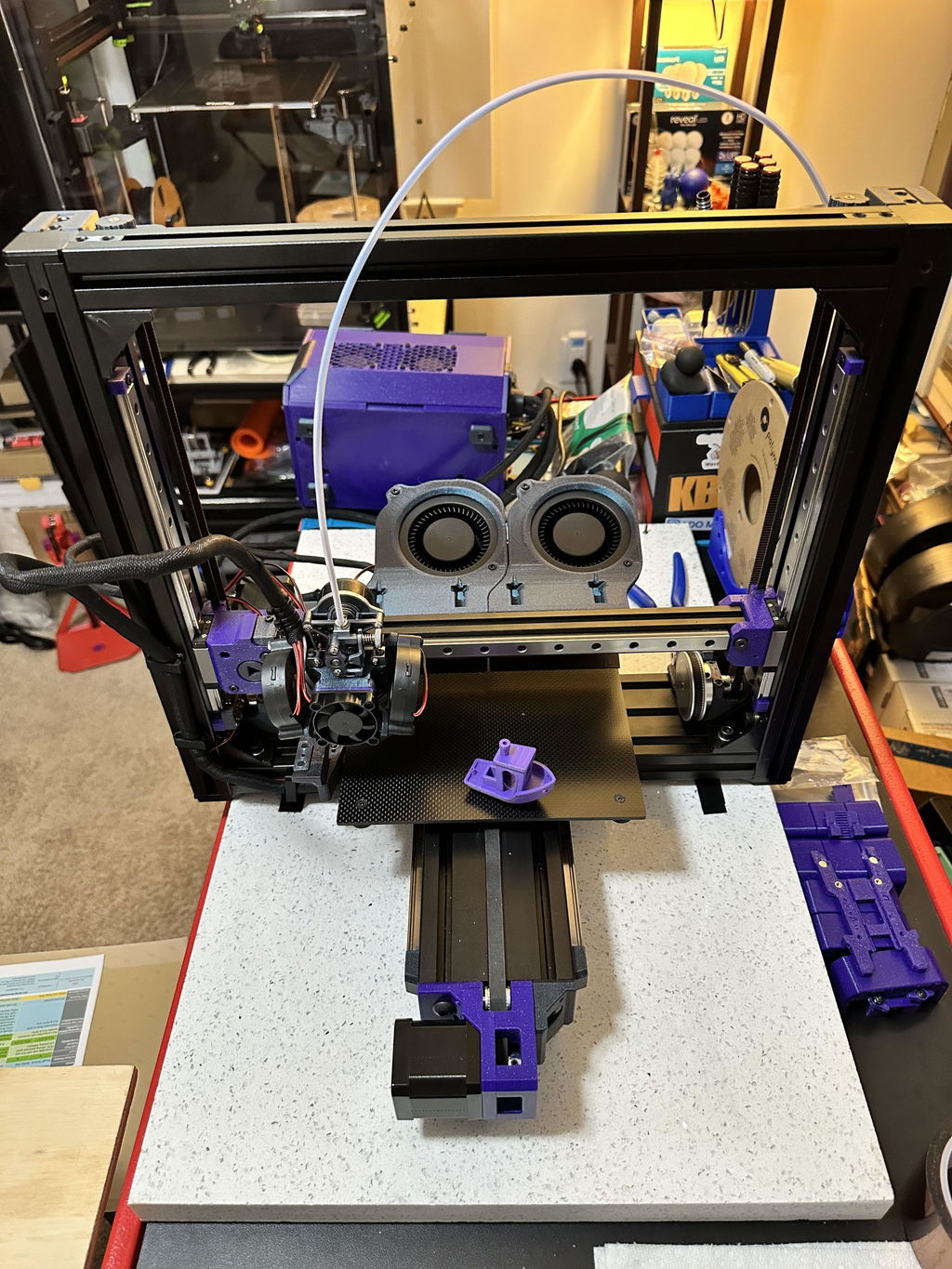

The printer kit is pretty complete and was fun to build. I was missing the 24V power supply in my kit but I have several on-hand. The kit build is about a medium level of complexity and required jumping between the manual and CAD to ensure clarity. The designer is VERY responsive and has been making updates to the documentation and build order based on my build stream videos! If you want a bit of a challenge for your next build and a fun printer when you are done, then definitely pick up an LH Stinger!
