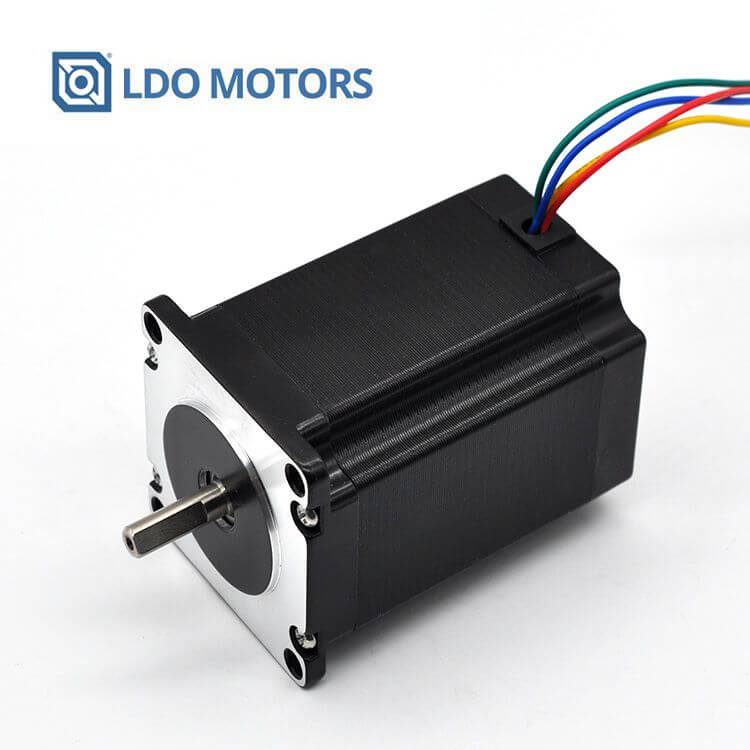

Nema 23 Stepper motor (57STH86-3004A) high torque 1.8 deg, 345 oz-in of torque by LDO motors
$39.99
Nema 23 Stepper motor (57STH86-3004A) high torque 1.8 deg, 345 oz-in of torque by LDO motors
$39.99
What it is:
this beast of a motor is an excellent choice for CNC applications, with its 345oz-in of torque and IP65 rating its ready to push your setup to the limits.

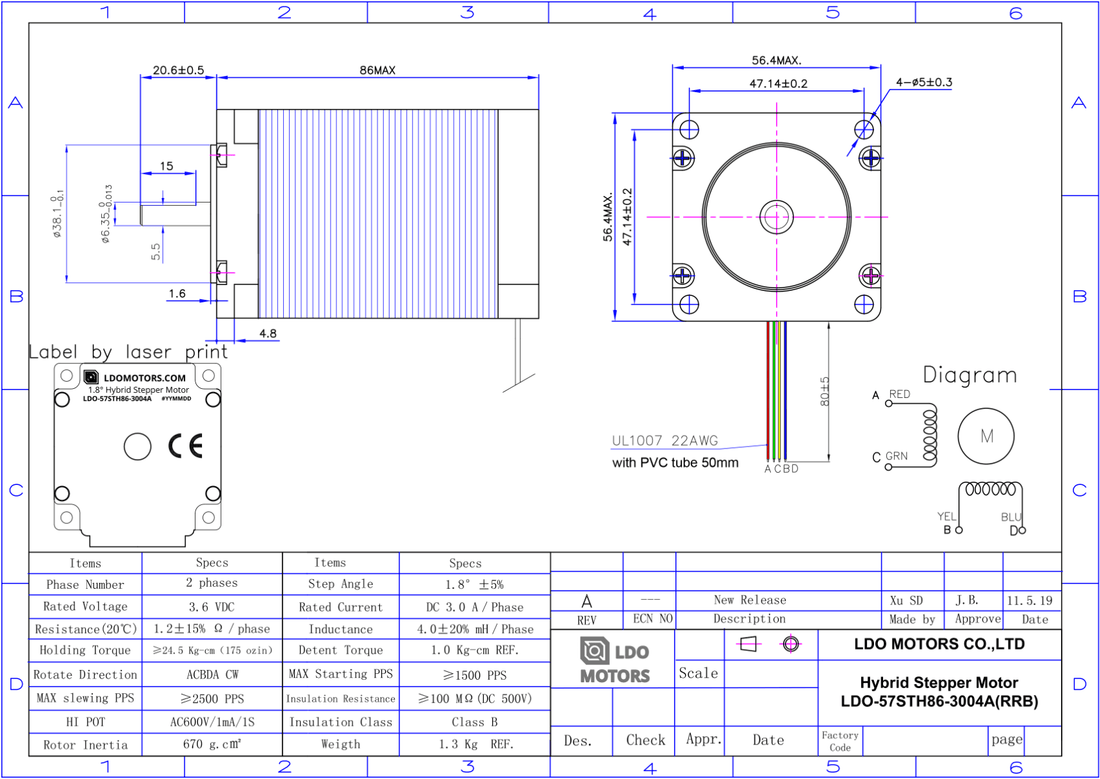

Technical info:
- Manufacturer: LDO
- Model: LDO-57STH86 (IP65)
- Holding Torque: 24.5 kg/cm - 345oz-in
- Shaft: 6.35mm / 1/4"
- Voltage rating: 3.0V
- Stepping angle: 1.8 degrees
- Current rating: 3.0A/Phase
- Connector type: Pre-tinned 8cm
Note: this is the IP65 version of the standard motor which is dust tight and resistant to liquids.
Backed by our 45-day no questions asked return policy.
