Rat Rig Rat Pack HEPA grade filter module
Rat Rig Rat Pack HEPA grade filter module
Rat Rig Rat Pack HEPA grade filter module

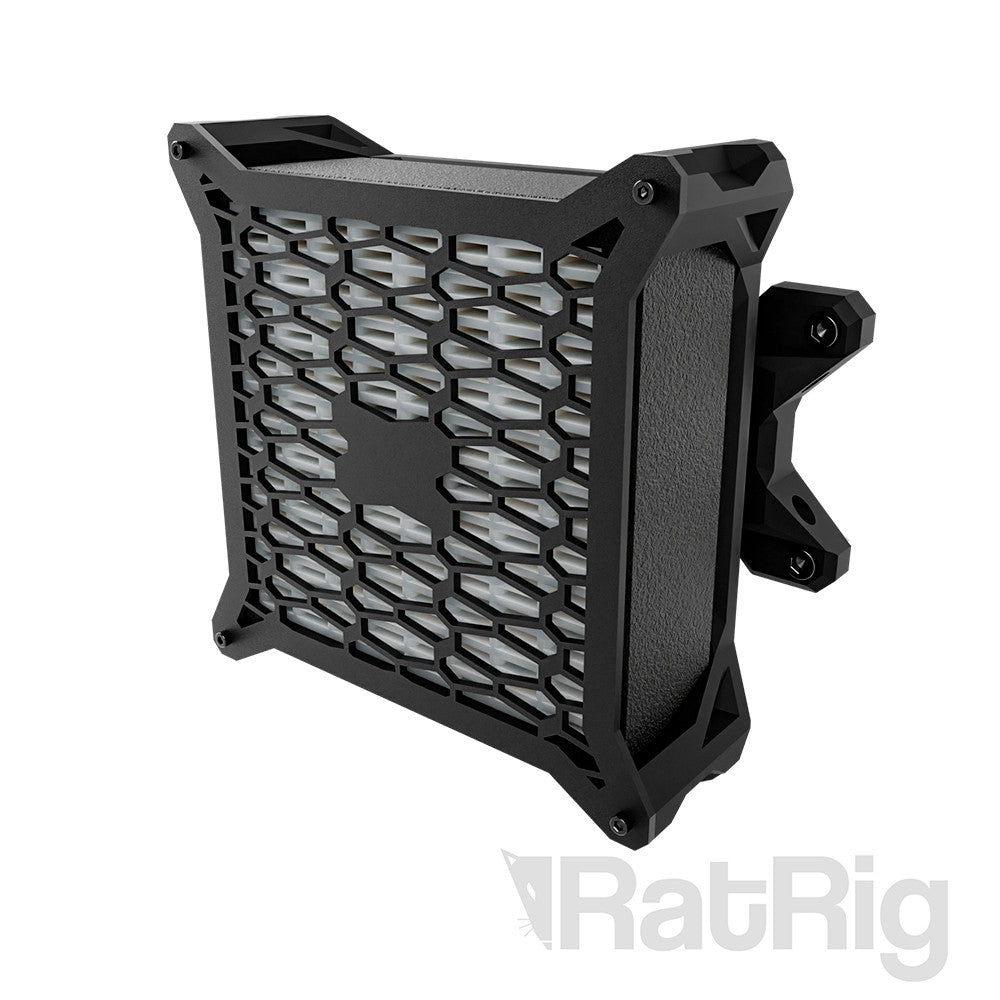

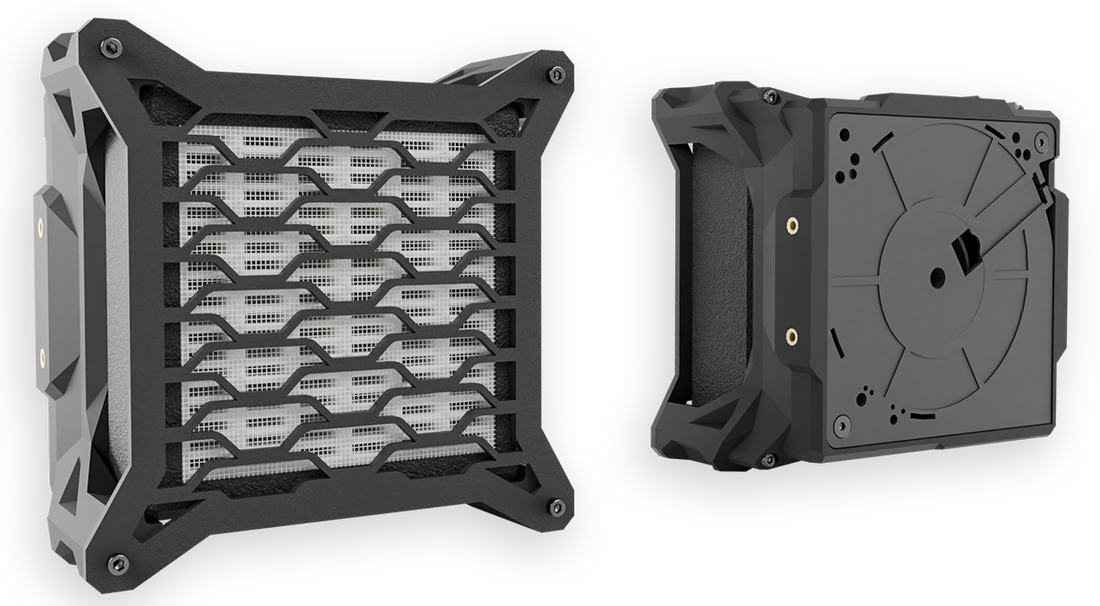

A compact HEPA grade filter module with activated carbon and active air circulation, to keep the atmosphere inside your 3D Printer enclosure free of any harmful fumes/particles. The activated carbon is effective against odors and VOCs (Volatile Organic Compounds).
PRINTED PARTS ARE REQUIRED BUT NOT INCLUDED! (available soon)
(STLs are available at docs.ratrig.com)
The full integration with RatOS and native Klipper allows you to easily set up air circulation triggers and automations throughout the print.

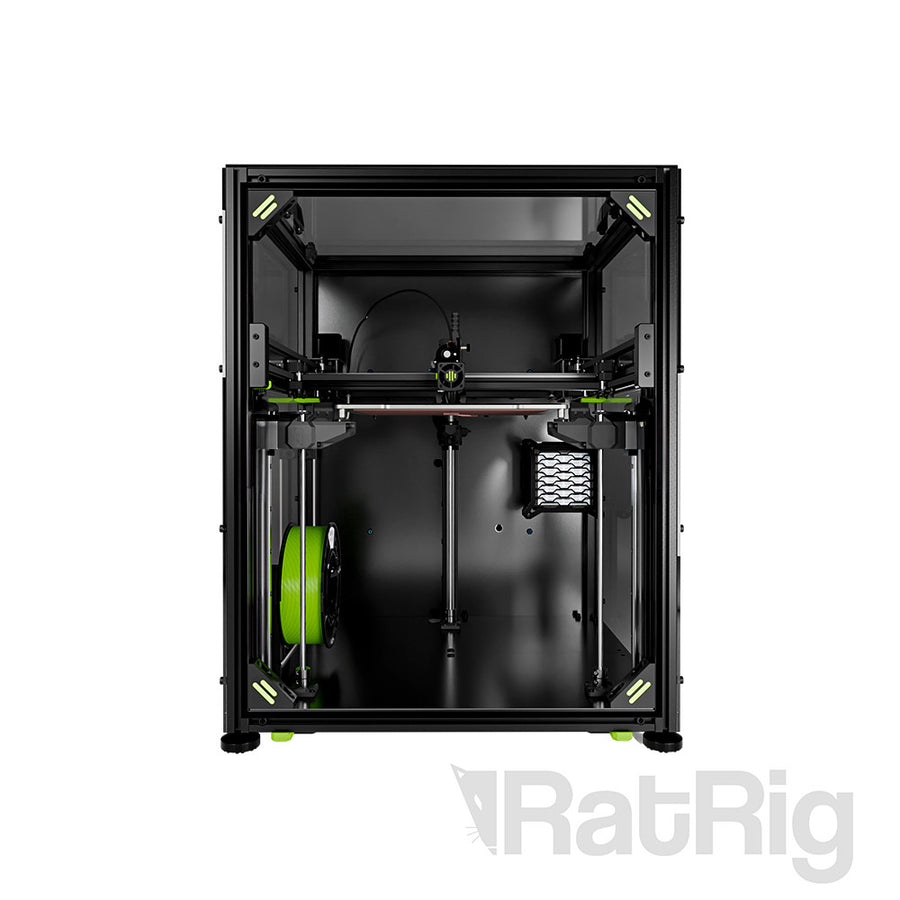

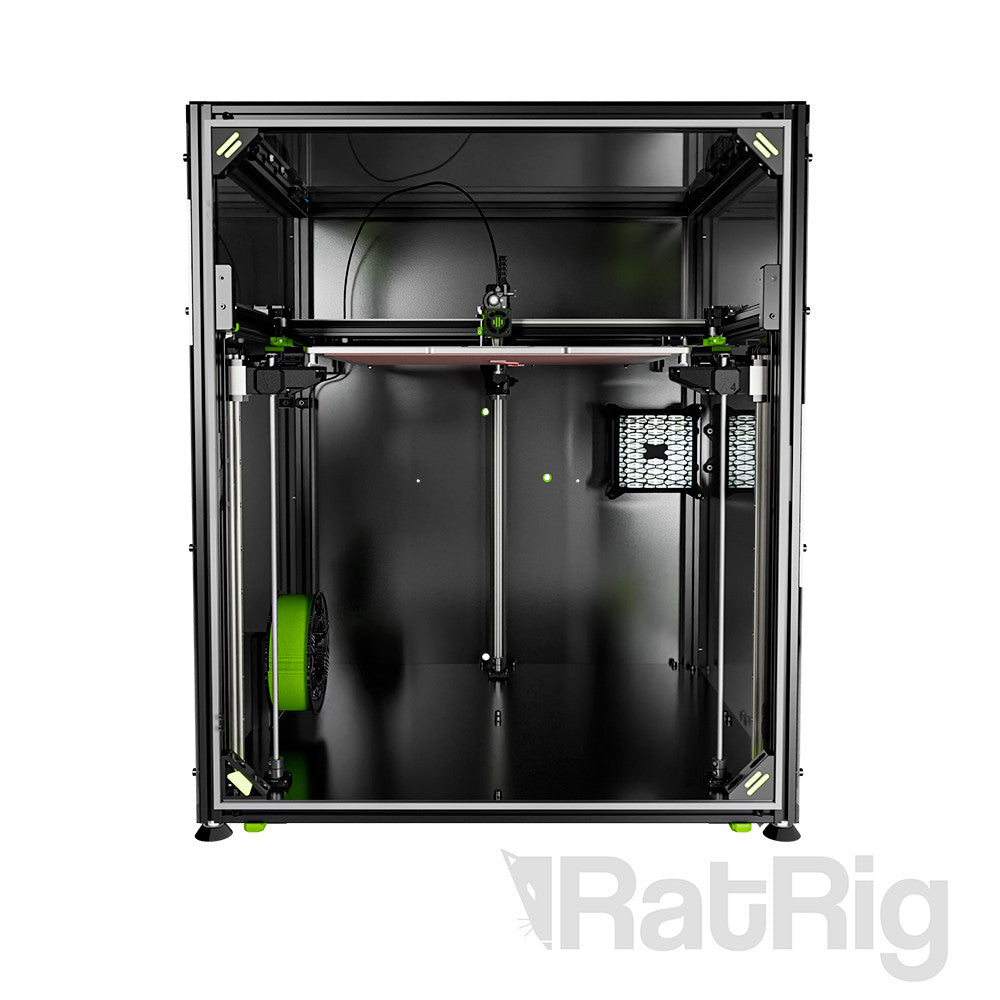

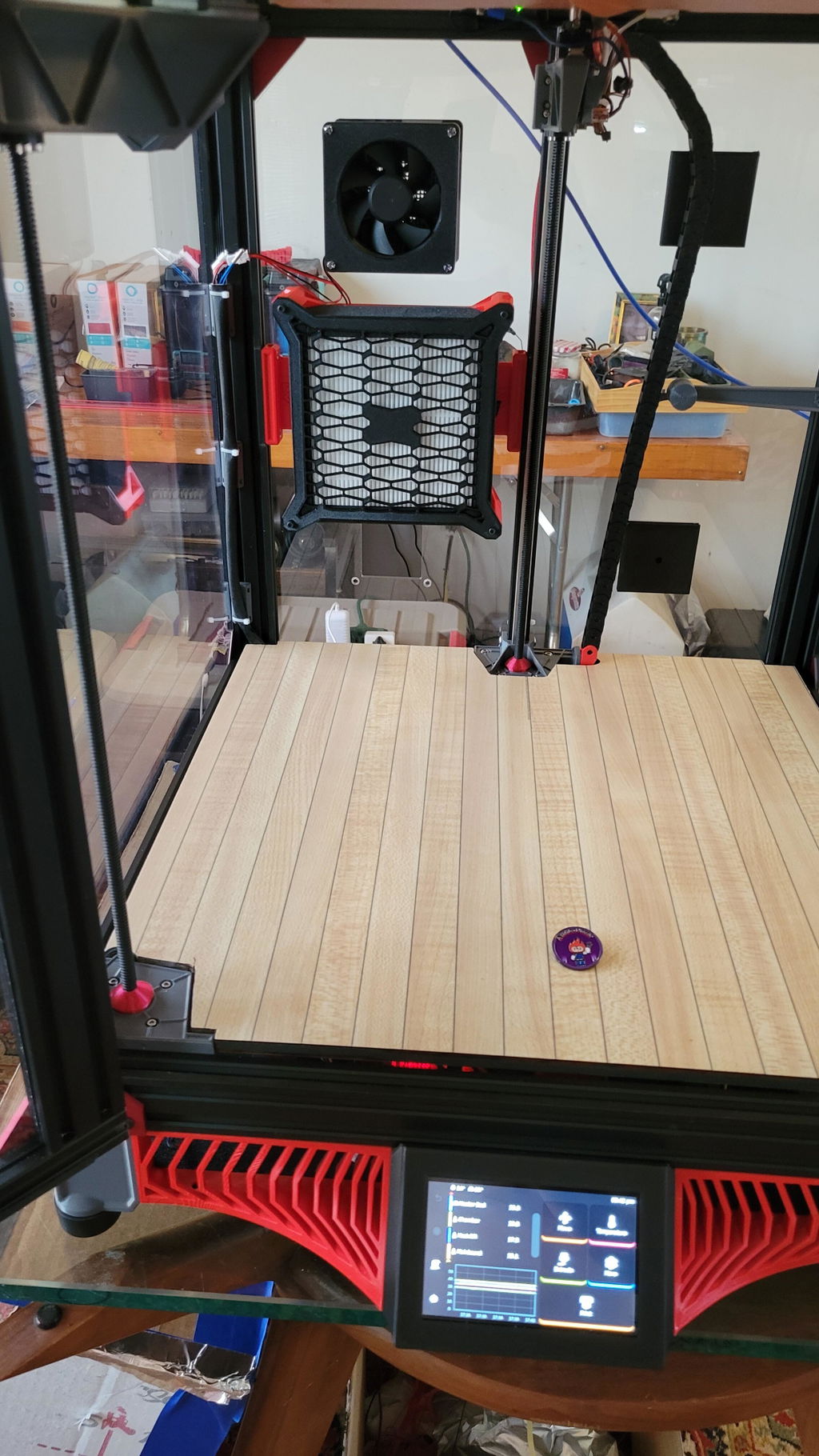

Designed for V-Core 4, compatible with V-Core 3, and featuring a design with multiple mounting points so you can easily adapt it to your printer of choice.

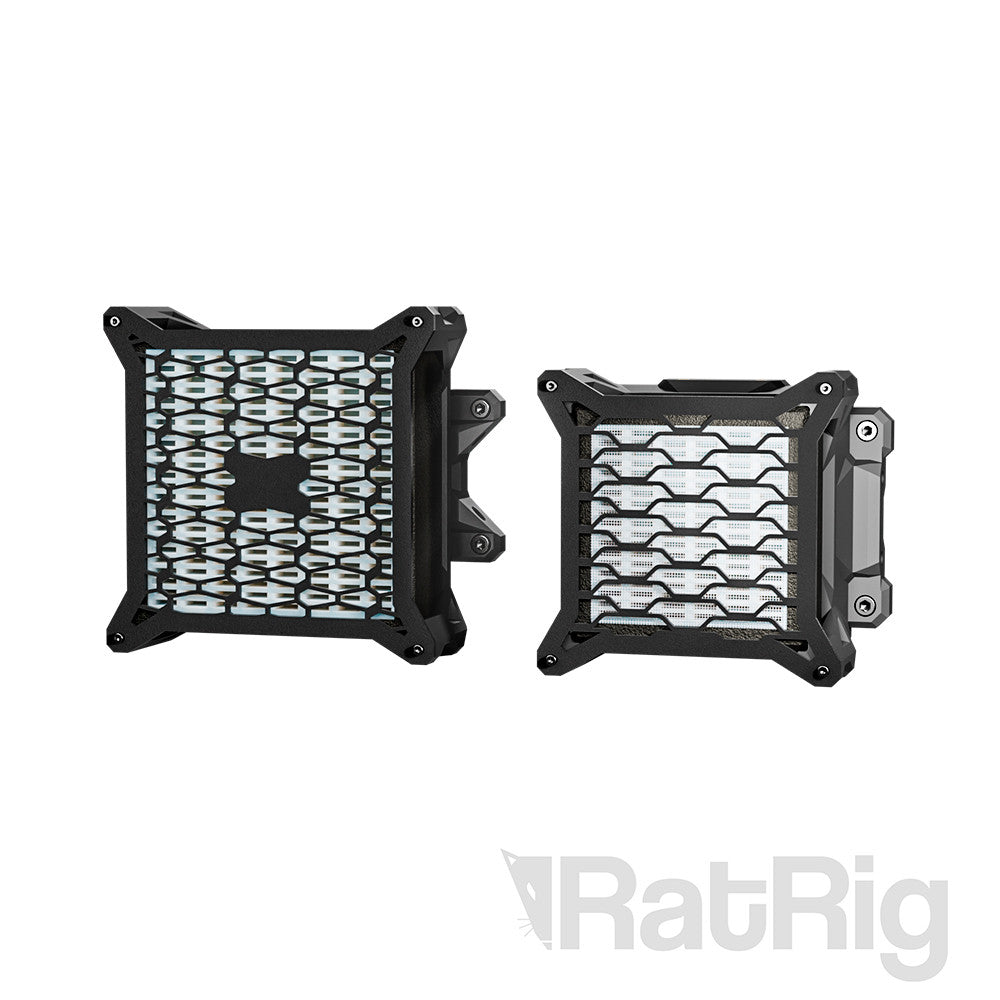

Available in 2 sizes, to maximize compatibility options with smaller printers.
Compatibility
| V-Core 4 |
|---|
|
- Compatible with both Rat Pack sizes
- Printer sizes 400-500: Large Rat Pack is recommended
- Print size 300: Small Rat Pack is recommended
|
| V-Core 3 |
|
- Only compatible with Small Rat Pack
|
| Other Printers |
|

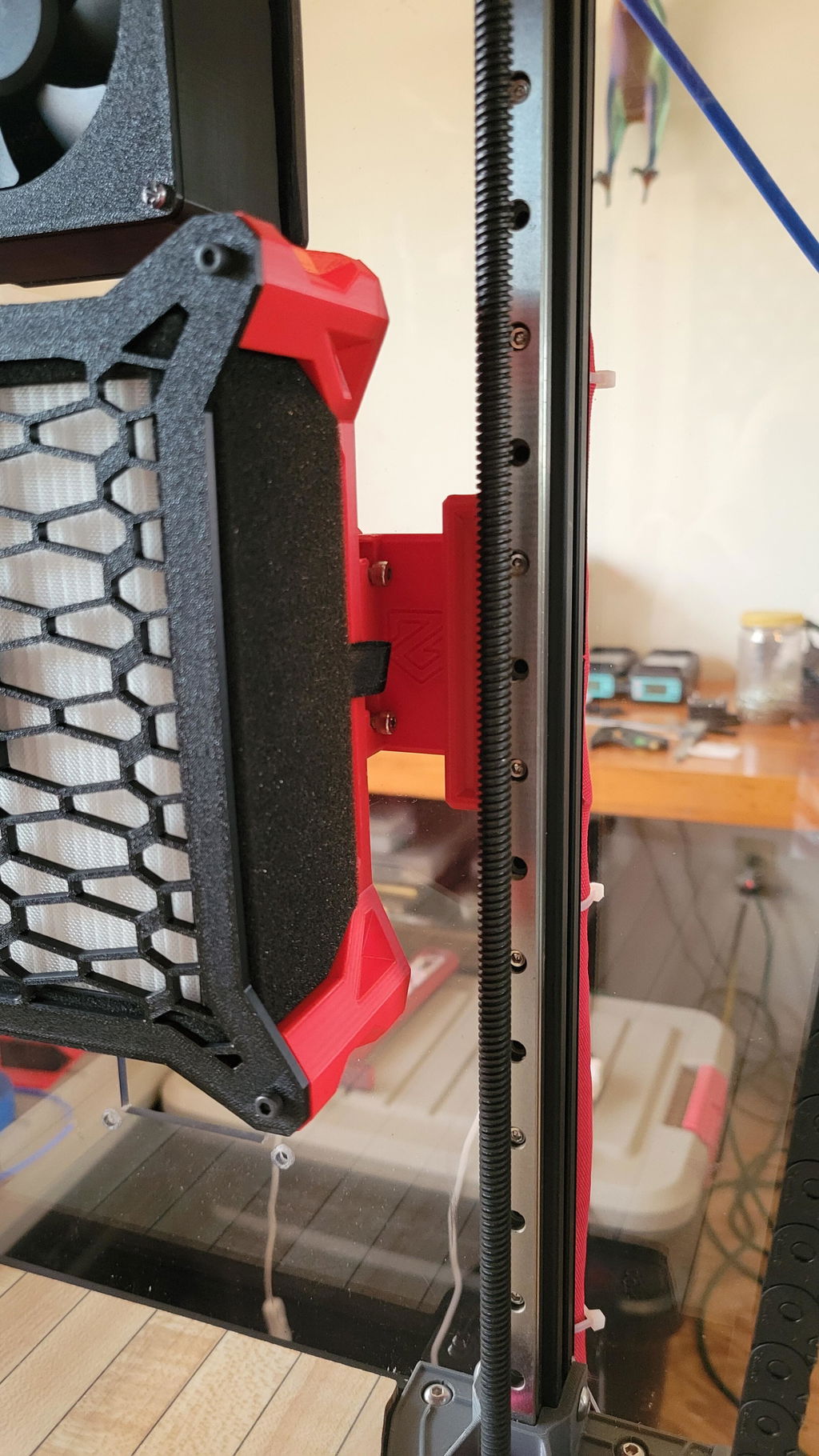

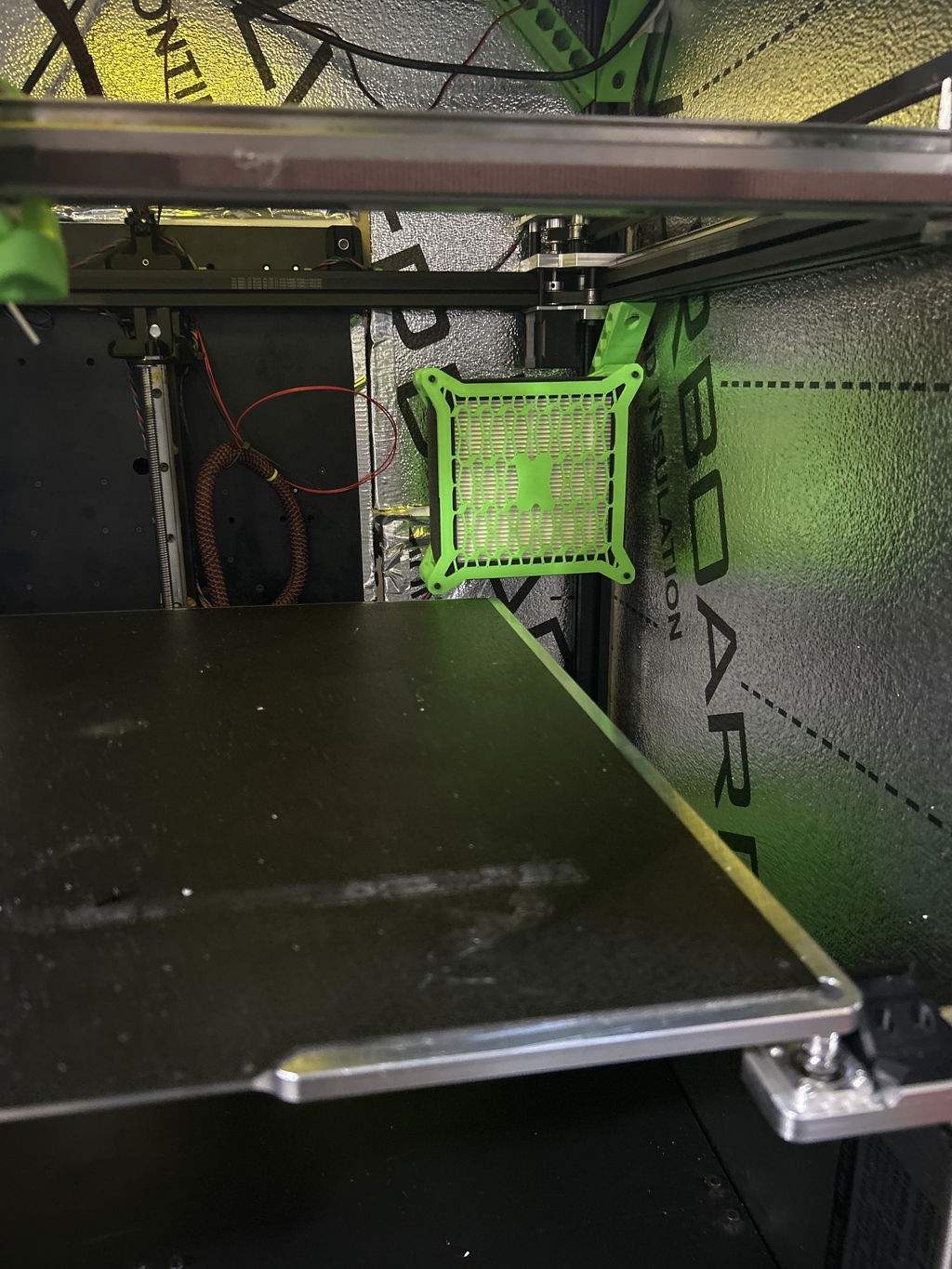

- Rat Pack was designed to be very flexible when it comes to mounting options
|
HEPA Certified filters by Alveo 3D
| Small Version | Large Version |
|---|---|
|
- Filtration class: HEPA 13 pleated, impregnated cotton
- Activated carbon: 1-3 mm granules, coconut
- Sealed surface
- Service life: 600 hours*
- Filter type: Pleated surface and honeycomb structure
- Materials: Cotton, PP, and PET
- Filter resistance: 40 Pa (at max airflow)
- Optimum efficiency up to 60°C
- Maximum airflow: 40 m3/h
- Operating temperature: 0-60°C
- Dimensions: 124 x 124 x 44 mm
|
- Filtration class: HEPA H14
- Activated carbon: 1-3 mm granules, coconut
- Seal: PU foam
- Service life: 900 hours*
- Filter type: Pleated surface and honeycomb structure
- Materials: Cotton, PP, and PET
- Filter resistance: 120 Pa (at max airflow)
- Optimum efficiency up to 60°C
- Maximum airflow: 55 m3/h
- Operating temperature: 0-60°C
- Dimensions: 160 x 160 x 53 mm
|
| Fan Specifications |
|---|
|
- Voltage: 24V
- Rated Speed: 3000 RPM ± 10%
- Noise Level: 52.9 dBA
|
Backed by our 45-day no questions asked return policy.
