Box turtle Enclosure kit by LDO

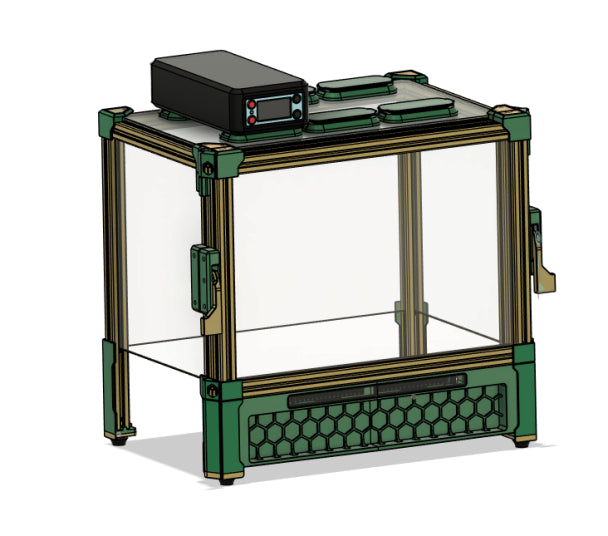

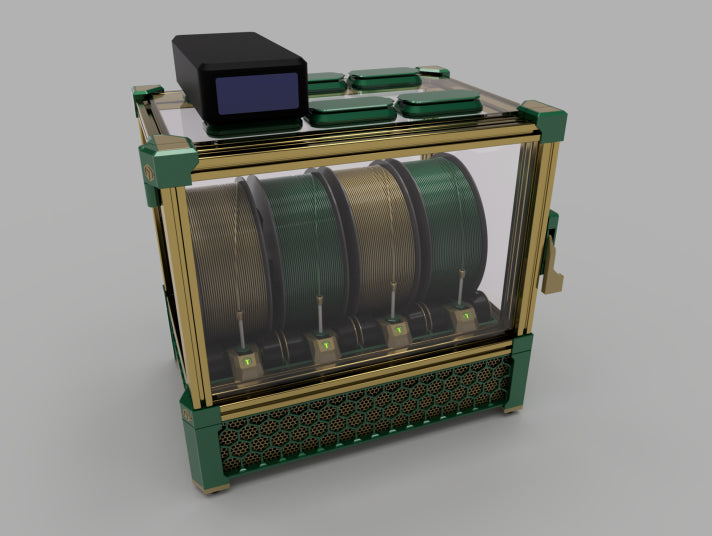

Enclosure kit for Box turtle, made by LDO. Comes with all the necessary hardware, panels and 1x Polymaker Dryer unit.

preorder information:  Expected to ship by Mid May

Whats included

  • Acrylic panels in 3mm by LDO
  • Aluminum extrusions in Balck, Gray or Blue
  • Hardware required to assemble it including extras

Requires printed parts, they will be available soon


Hardware details

360mm length 2020 aluminum extrusion 7 drill and tap per manual
280mm length 2020 aluminum extrusion 2 drill and tap per manual
220mm length 2020 aluminum extrusion 2 drill and tap per manual
3mm thick panels 2x side, front/rear, top Panel DXFs
4x6x6 oilless bushing 4 4mm bore, 6mm OD, 6mm length (same as Stealthchanger BOM)
4x30mm metal dowel pin 2
Rubber Panel Seal ~4.5M Same as "clicky clack fridge door" mod.
3mm foam tape ~2.5M
M5x16 BHCS 10
M3 Threaded Heatset insert 26 'VORON spec' - M3, 5mm diameter, 4mm length
M3 2020 roll-in nut 24
M3x8 BHCS 46
M3x12 BHCS 10
M3x18 BHCS 10
M3x50 SHCS 1
Polydryer dock 1 (can run up to 3)



Links

A portion of all sales are donated from LDO to the ArmoredTurtle project in support of this Open Source Hardware project!

Backed by our 45-day no questions asked return policy.
